Reverse Osmosis Seawater Purification Machine 500 Gpd Water Desalinator
Reverse osmosis seawater purification machine 500 gpd water desalinator500 GPD water desalinator 1)Product Description500 GPD water desalinator is professionally used in shipping application,such as yacht,fishing vessel,etc.Such a kind of device makes your voyage faster,farther and more comfortable,......
Send Inquiry
Product Description

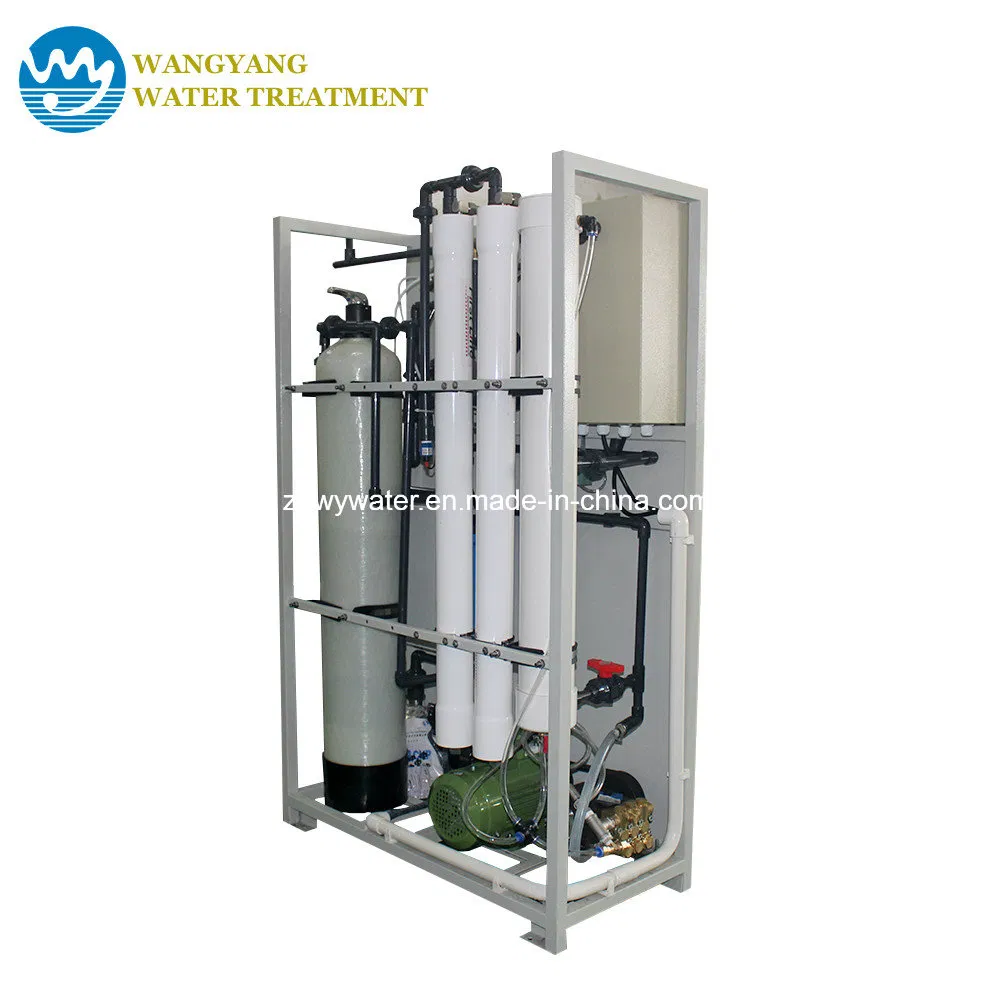

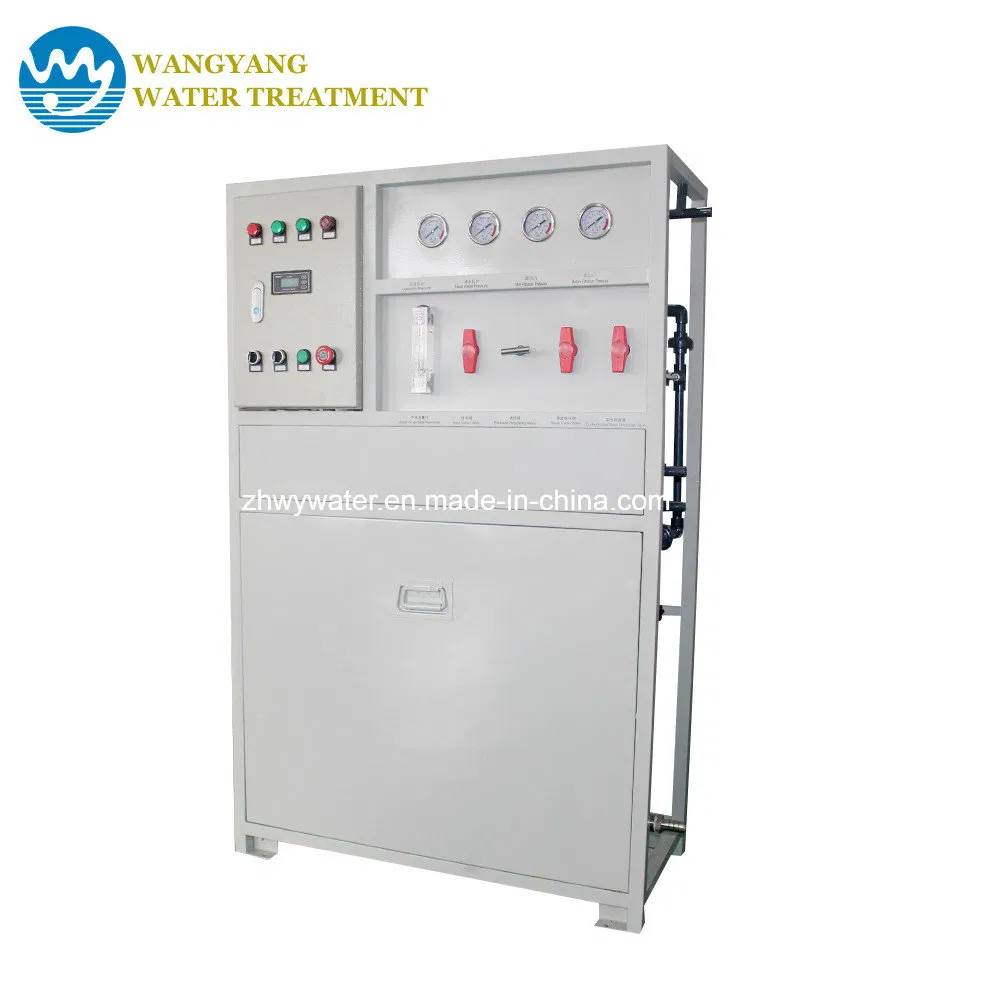

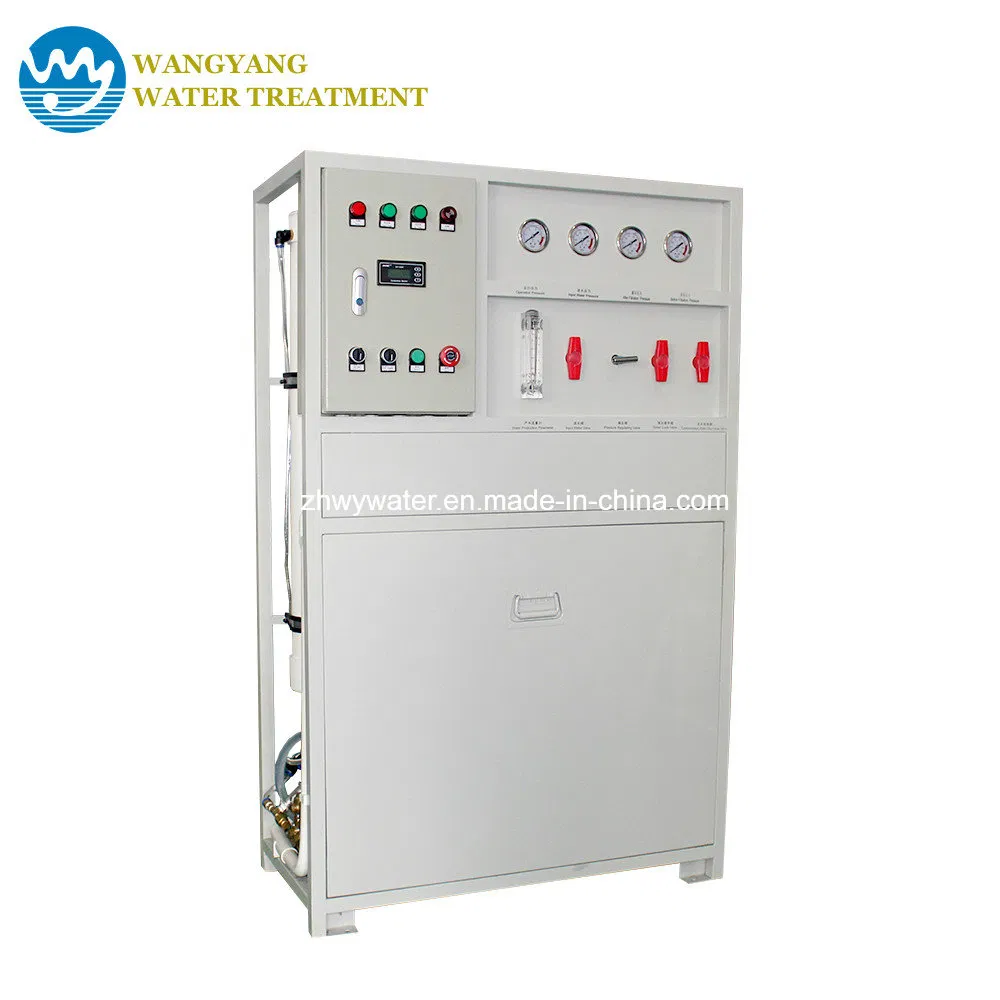

500 GPD water desalinator
500 GPD water desalinator is professionally used in shipping application,such as yacht,fishing vessel,etc.Such a kind of device makes your voyage faster,farther and more comfortable,which will create more added value for you.
Model | WY-FSHB-2 |
Water Yield | 2m³/d |
Inlet Water | Sea Water |
Desalination Rate | ≥98% |
Recovery Rate | ≥18% |
Operation Pressure | <6.5Mp |
Voltage | 110~450V ; 50Hz/60Hz |
Power | 2.05KW |
Main Material | Stainless steel |
Protection Level | IP54 |
Inlet Water Temp Suggest | 5~45°C |
Working Environment Temp | 0~45°C |
Working Environment Air Humidity | 20%~90% |
Control Valve | Automatic / Manual |
Dimension | L820*W440*H1500mm |
Aplication | Yacht,fishing vessel,boat,household,etc. |
Certificate | ISO9001,CCS |
Warranty | 2 Years |
Customized | Available |

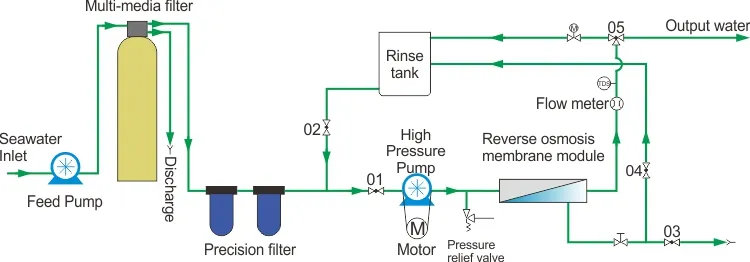

2)Process Info for 500 GPD water desalinator
| Feed pump → | Brand name: CNP( Optional ) Single water flow: 2m3/h Head of delivery: 32m Power:0.55 KW Providing backwashing and rinsing engine for multi medium filter and precision filter. |
| Multi medium filters → | Dimension:Ø200x1100mm, FRP Single water output: >1m3/hr Output pressure: 0.4Mpa The function of multi medium filter is to guarantee the entire alga, specially the suspended solid, minerals, metals and many other large particulate get rid of the original water .The filter can reduce the pollution index of the original water which can meet the RO system's requirement at a long term. |
| Precision Filter → | 2m3/h,5μm,UPVC The inner part of UPVC micro filtration filter is set 10um winding wire filter cartridge and 5umpp filter cartridge. In order to prevent the material leakage in filter and left suspended solid from entering the membrane system before water enter reverse osmosis equipment through passing activated carbon filter, a security filter should be set ahead of the membrane system. Taking account of the filtering effect, operation cost and convenience to replace the filter bag and other operation, this design adopts the most advanced filtration technology of our company. |
| High pressure pump → | Brand name:Italy( Optional) The effect of high pressure pump is to provide enough input pressure for reverse osmosis device. According to the nature of reverse osmosis itself, a certain degree of driving force is needed to overcome osmotic pressure and other resistance and to reach the specific productivity designed. |
| RO system → | RO membrane:DOW(Optional ) RO system is the central desalination unit in this system, almost all soluble salt, colloid, organics and microbe will be cleaned out by applying the RO membrane's peculiarity. The qualified output water by pretreatment enter RO system. Water molecule throw membrane, collect by plumbing, finally, enter water tank. Concentrate water be collected by another plumbing, finally, it is exhausted. the system have valves, monitoring meter and programming controller operating system, they will ensure systematic running chronically. |
| Rinse system → | Ro system after running chronically, It can be polluted by some substances rinse out hardly. Micro-salt and organics scale chronically to make film performance decline, operating pressure go up, so system must be rinse with chemical agent, so that it return to normal. |
3)Main Features of 500 GPD water desalinator
Reverse osmosis technology is a modern high technology that use reverse osmosis to seperate water from solution after it permeates the specially-made semi-transparent membrane though exerting a pressure that is higher than the osmosis pressure on the solution.
According to different osmosis pressure of various materials the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution. It saves more energy than traditional process.
3.1)Small volume,light weight,little occupation;
3.2)Easy installation & high adaptability;
3.3)Low noise & high capacity;
3.4)Stable performance,high safety & reliability.
3.5)It's suitable for 8~10 people.
4)Design & Manufacture
| Maintenance space | The front 1000mm, the back 700mm,the left & right each side1000mm. |
| Feed pump inlet | DN25 |
| Concentrate water outlet | DN15 |
| Product water outlet | DN15 |
5)Package & Shipment
5.1)Package
500 GPD water desalinator is with international standard export package.
(Wooden Case,Carton Box & Export Neutral Packing available)
5.2)Shipment:
We will choose the most suitable shipment according to customers' need.
6)Our Services
6.1)Installation & Commissioning
As the supplier,we have the responsibility to complete the installation & commissioning for customers before shipment.For customers need,we're available to finish that in customers' requested place.
6.2)Training
We will provide clients technical training,which includes equipment structure & maintenance, control & operation. In this way, the technicians of customers can grasp relevant skills after training.
6.3)Quality Assurance & After-sales
Equipment mechanical part is given total quality assurance within two years from the equipment installation and commissioning completed acceptance.During the warranty period,our company will arrange technologist to call you and ask about the equipment using situation very quarter.Consumable materials and vulnerable parts which are normal wear and tear are not within the warranty.Outside the quality assurance period,we can also provide comprehensive technical support and maintenance services for customer.
7)Company Introduction

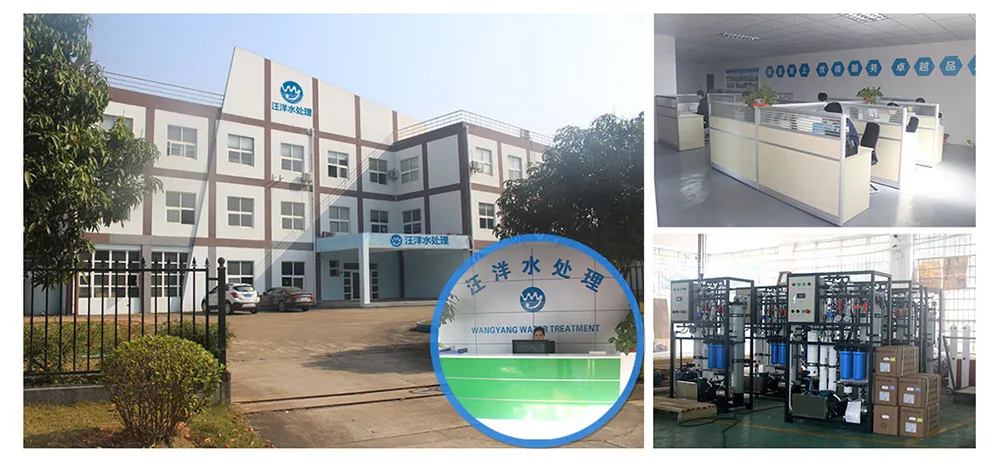

7.1)Profile
Founded in 2010,Zhuhai Wangyang Water Treatment Equipment Co,.Ltd. is a high-tech enterprise integrated with R&D,production,selling and engineering installation.Specializing in seawater and brackish water desalination,reclaimed-water recycling, hyper pure water,boiler-feeding water,electroplating metallurgy,we have professional technical team and after-sales team.
With continuous innovation and good quality guarantee,we have obtained some certificate like ISO9001,CCS,etc.As well,we have our own patent.
We persist in the principle "Customers come first,High-quality service,Excellent product".Integrity is the root of our long-term development while customers' satisfaction is our persistent pursuit.
7.2)Certificate
3)Attending Exhibitions
8)FAQ
Q1:Are you manufacturing company or trading company?
A:We're a professional manufacturer for water treatment equipment.And always welcome to visit our factory.
Q2:How should I select the plant?
A:It depends on your requested parameters,such as raw water source,water quality,water yield,voltage,etc.
Q3:What's your suggest for maintenance?
A: 1)check all circuit whether damaged;
2)check valve whether malfunctioning phenomenon;
3)check all pipes for leaks;
4)If long time no use,you should add protective solution to protect the reverse osmosis:
4.1)Open inlet which in the front of the high-pressure pump (see illustration), make well the protective solution in the water tank ,then connect with the tank via pipe , start the water tank pump, when the protective solution full filled with reverse osmosis membrane group, turn off the water tank pump, close the inlet. Meanwhile every day to observe, such as protection fluid leakage situation, should replenish the above step.
4.2)Before equipment start-up , protective solution should be clear up.
Q4:Could you offer some info about troubleshooting?
A:Our pleasure in doing that.
1)high-pressure pump:
Each work 200 hours to inspect, pressure whether normal, whether the crankcase short of oil, the pump whether abnormal and other tests, such as abnormal working, in accordance with the manufacturers instructions for maintenance. If do not have maintenance skills, please timely contact with the manufacturer, we will maintenance for client.
2)booster pump:
Maintenance, inspection, refer to the high-pressure pump, the specific details, see the lift pump manual requirements. Equipment failure, if you are able to maintenance and repair, the manufacturer can provide technical support. If do not have skills to repair, made it clear that the cause of the malfunction and fault coverage, please contact the manufacturer.
Q5:What's your payment term?
A:PayPal,T/T,Western Union,L/C available;40% deposit before manufacturing,and the rest should be paid before shipment.
9)Advantages of Choosing US
9.1) Our company has obtained ISO9001 quality management system certificate, Inspection certificate of China classification Society(CCS) and the letter of patent for seawater desalination equipment in container.
9.2) We are the direct manufacturer. We have our own factory so that we can offer you high quality product with a good price.
9.3) Owning a self brand "WANGYANG" and a professional practical engineer team.
9.4) Total water solution is available.
9.5) The punctual delivery of goods, quality and quantity guaranteed.
9.6) 8 years experience, OEM&ODM available.
