Product Description

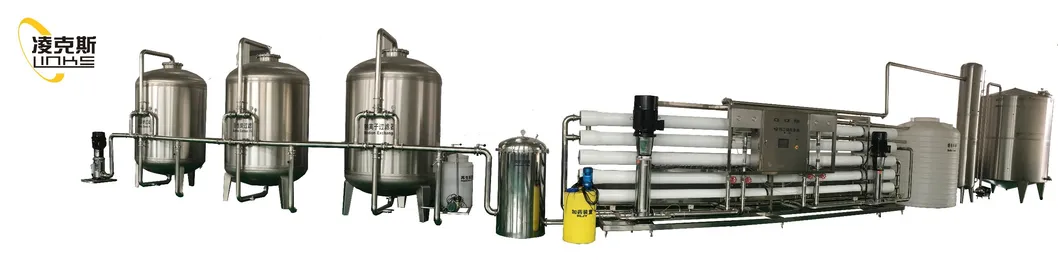

Reverse Osmosis RO System Water Treatment

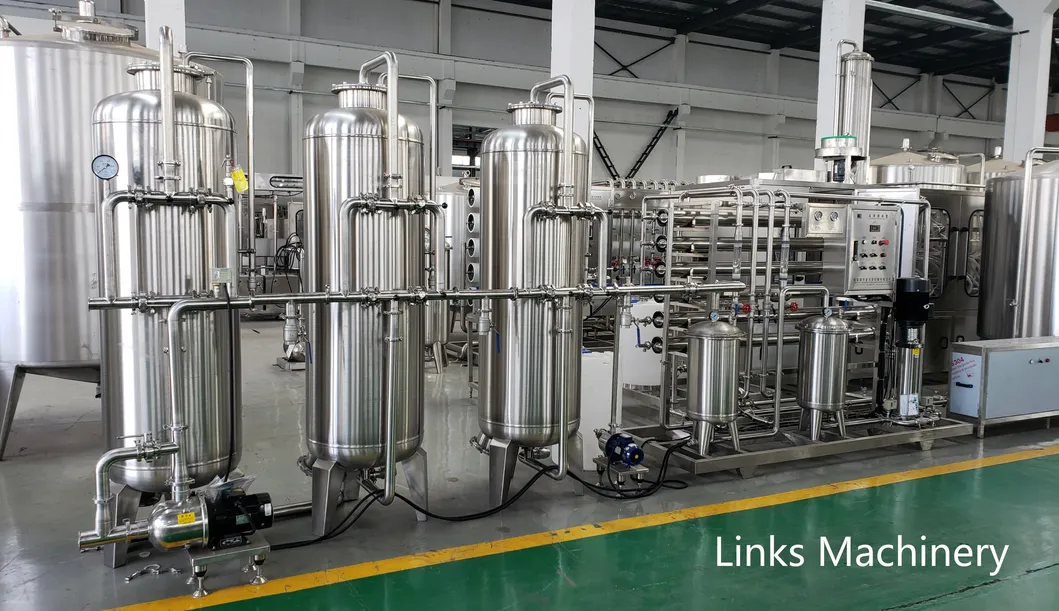

(1)Raw water→ Raw water tank→Raw water pump
(2)Quartz sand filter→ Activated carbon filter→Sodium-ion exchanger→Ultra filter
(3)High pressure pump Reverse Osmosis
(4)Qzone sterilizer→ Pure water tank.
* Introduction
First stage pretreatment.(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Fourth stage pretreatment (Micron filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
RO system
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.
* Operating Parameters
1. Operating Pressure: < 300 psig
2. Maximum Recovery: 60% - 75%
3. Nominal Rejection: 95-99%
4. Operating Temperature: 2-35 ºC
5. Minimum Inlet Pressure: 30 psig
6. Design Temperature: 25 ºC
* Applications
Industry | Application |
Electronic industrial | Cleaning water of electronic components (Integrated circuits, silicon chips, display tube, electrode foil |
pharmaceutical industry | Transfusion, injections, tablets, biochemical products, equipment cleaning, etc. |
Chemical industry | chemical recycling water,chemical products manufacturing,chemical fertilizer |
Electric power industry,Boiler Feed water | Thermal power boiler, low pressure boiler power system in factories and mines |
Food industry | Pure drinking water, beverages, beer, wine, health products |
Seawater, brackish water desalination | Island, ships, offshore drilling platforms, brackish water |
Drinking water | Estate, communities, enterprises |
Others | Grey water reuse, coated glass, fine chemicals, printing and dyeing |
* Advantage
1. Compact structure, small footprint, low investment costs, low energy consumption;
2. Reverse osmosis system is a physical process, no phase change, significant energy-saving;
3. Simple operation, easy to realize automatic control, labor-saving, Highly pollution-resistant separation device, easy clean
4. High recovery rate and desalination, can produce fresh water from rivers, lakes, well water, sea water or brackish water;
5. A Concentration method to recover valuable ingredients;
6. Removal of organic matter, bacteria, colloidal and impurities in the water, obtain high purity water;
7. Advanced membrane protection system, when operating on/off switch, system can automatically operate flush function, reduce pollution, extend the life of the membrane.
