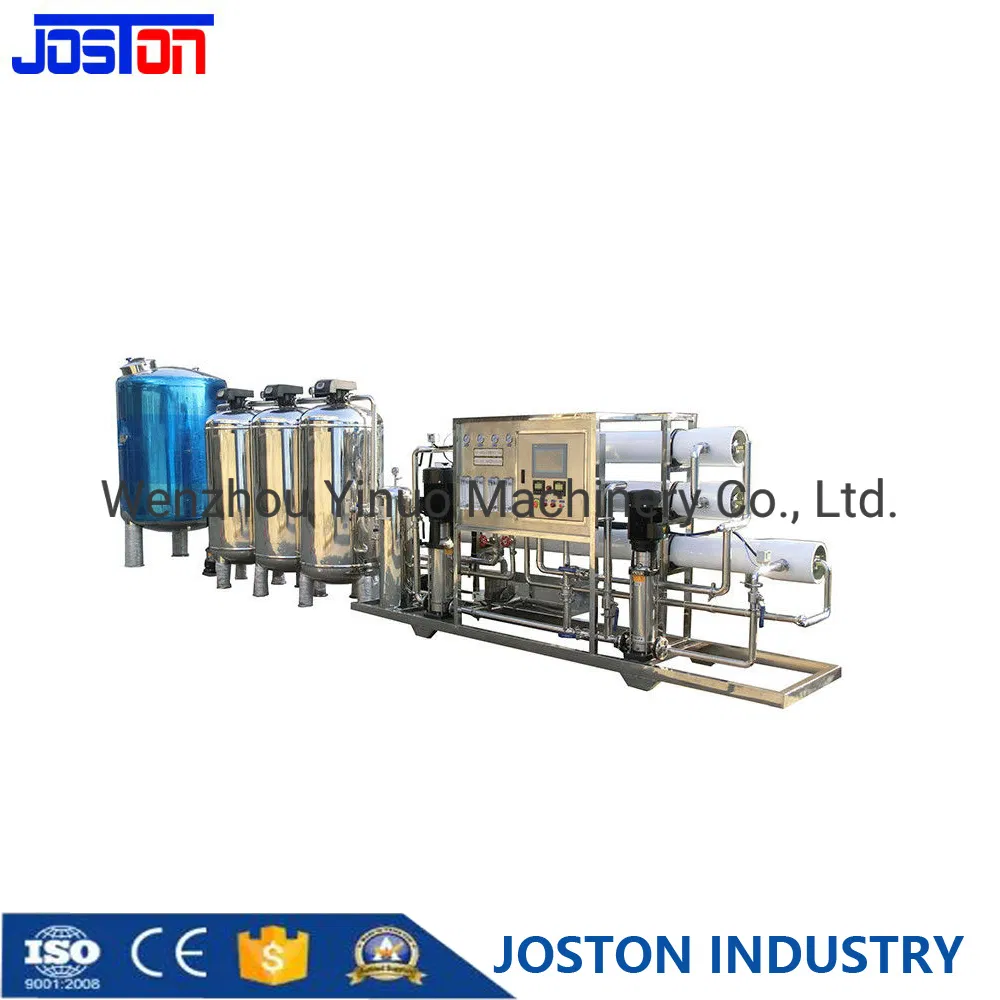

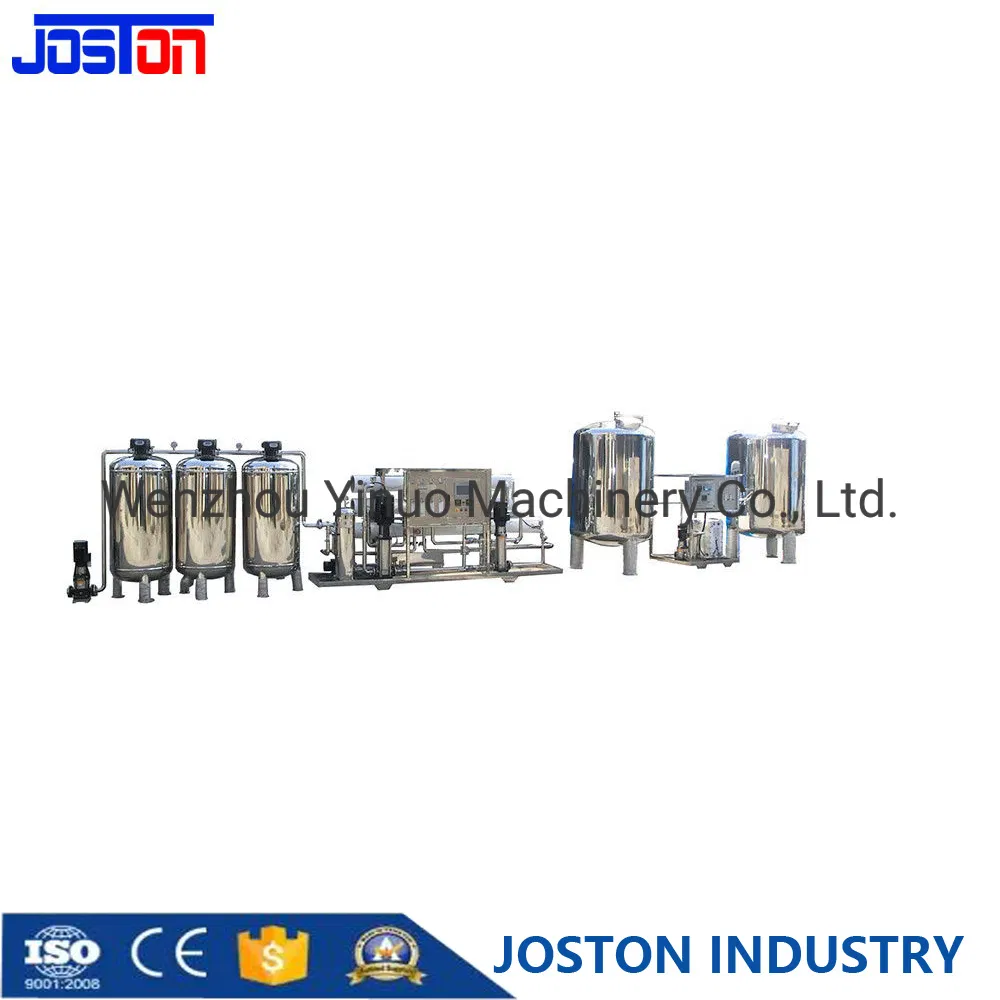

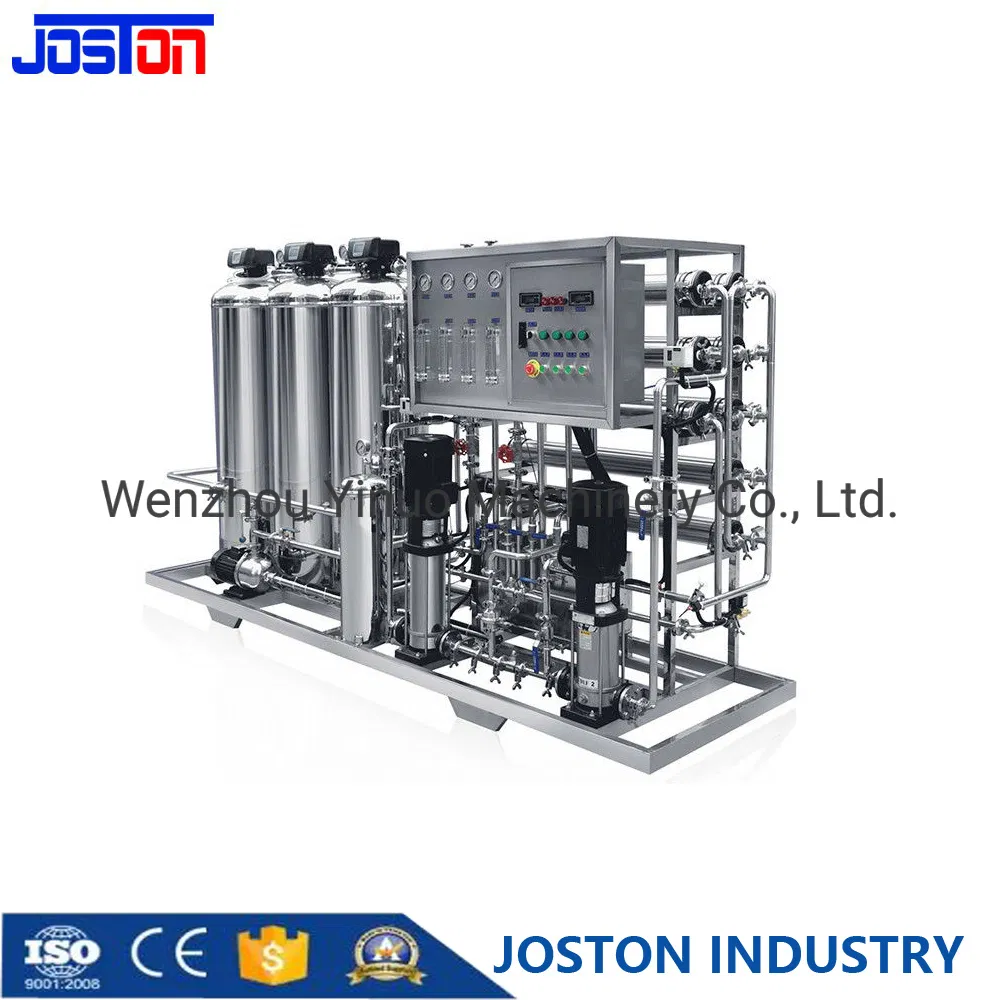

China RO Purification Water Treatment Equipment for Industrial and Potable Water

Product Description

Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions,molecules, and larger particles from drinking water. it could apply to both industrial processes and the production of potable water.

the working principle for the RO water treatment machine :

Feed water pump- Sand filter--Active carbon filter -Softener -Cartridge filter- High-pressure pump- RO system.

1). Feed water pump: provide the pressure to sand filter /active carbon filter/ softener

2). Sand filter: Get rid of turbidity, suspended solids, organic impurities and colloid etc.

3). Active Carbon filter: Remove the color, free chloride, organic matter and harmful matter etc.

4), Softener; Get rid of calcium, magnesium and bicarbonate ions in original / source water, reduce water hardness.

5). Cartridge filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity
.
6). High pressure pump: Provide the high pressure to RO membrane (at least 2.0 Mpa).

7). RO system: main part of pure water treatment plant. The desaltation rate up to 99%, capable of removing over 99% of ions, bacterias, particles and organics.

Model No	WT-RO-1000
Capacity	1000LPH(Liter per Hour)
Nominal Recovery	65-75%
Nominal Salt Rejection	99.60%
Operating Temperature	15°C-45°C
Design Temperature	25°C
Feed Pump	0.75KW
High Pressure Pump	1.50KW
Voltage	220V /380V/460V - 50Hz/60Hz

Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.
RO Purification Water Treatment Equipment for Industrial and Potable Water

FAQ
Q :What about your factory?
A :Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
Q :How long the warranty will be?
A :We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
Q :Which kind payment do your company do now ?
A :We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
Q :Do you supply installation equipment in oversea?
A :Yes, if need, we can send our engineer to your plant to help you do installation and commission.
Q :How can we know the order production status ?
A :We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here.
Q :how about your company after-sale serivce ?
A :1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
