RO Purify System Water Treatment System Machine
Product description:Usage: Reverse osmosis principle of work is as pure water and saline were ideal semipermeable membrane separated by a semipermeable membrane, it only allows water to pass through while preventing salt water side of the membrane by, the water will spontaneously through a semiperme......
Send Inquiry
Product Description
Product description:
Usage:
Reverse osmosis principle of work is as pure water and saline were ideal semipermeable membrane separated by a semipermeable membrane, it only allows water to pass through while preventing salt water side of the membrane by, the water will spontaneously through a semipermeable membrane into the saline side, this phenomenon is called osmosis, if compression forces in the membrane of the saline side, the water spontaneous flow will be inhibition and slow down, when the pressure reaches a certain value, the net flow of water through the membrane is equal to zero, the pressure is called the osmotic pressure exerted on the membrane, when the saline side pressure is greater than the osmotic pressure, water flow is reversed, the, saline in the water will flow into the pure water side, the phenomenon is water reverse osmosis (RO) processing.
Component:
Item assembly
Stainless steel high pressure membrane crake
RO high pressure bump 2set, nanfang bump
All kind indicator, pressure indicator, electricity magnetism ,balance device and pipeline valve system
Online pressure auto protection device
Online electricity indicator (comply for stability)
System safe protection
And alarm system
System frame
Product description:
Summary:
Reverse Osmosis ( RO ) Water Treatment Plant, Ultrafiltration Water System,Brackish Water Purification System,Water Filter System,Water treatment Equipment,Water Desalination System,Water Purifying Solutions.

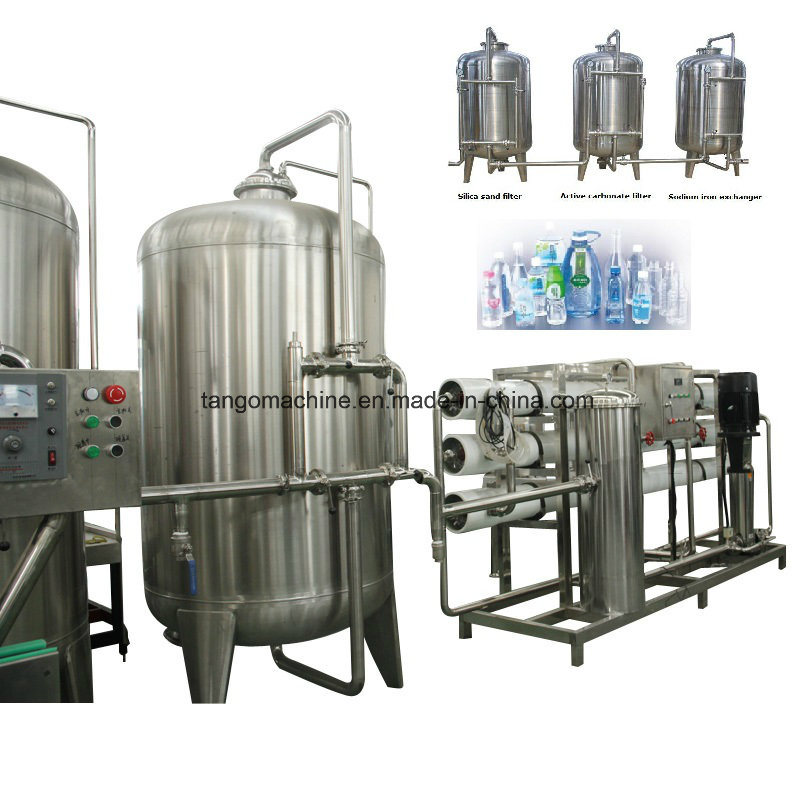

Reverse Osmosis water treatment machine/ Water Treatment Plant:
Multi-stage media filtration for pre-treatment, and RO unit for main filtration, polishing treatment of UV system and Ozone system.
Parameter:

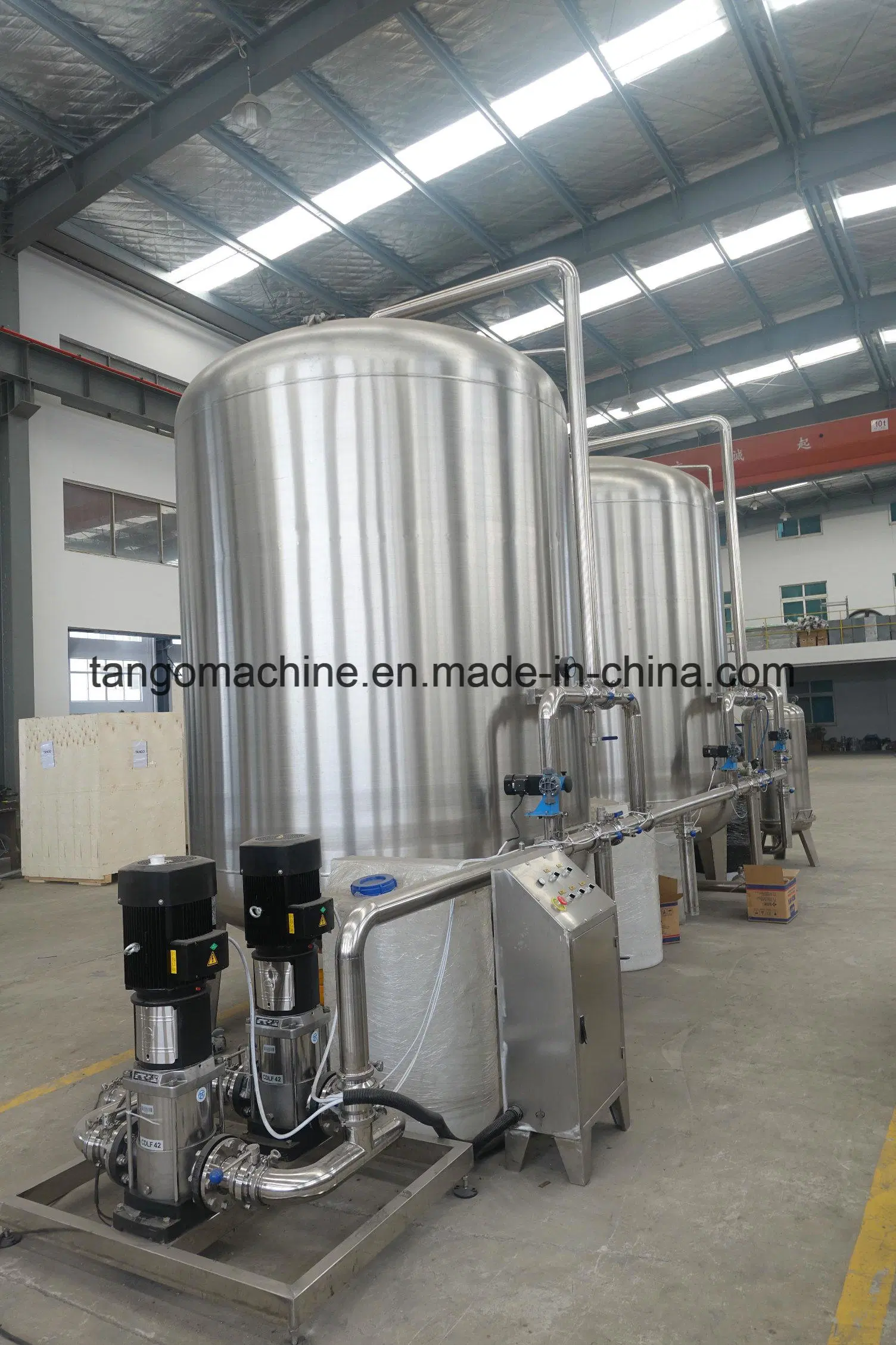

Water treatment system
1).Multi-media filter
The multi-media filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.
Diffuser
There is diffuser, installed in the filter. Their main function is to make the compressed air and the water distribute evenly during backwash and water distribution.
2) Active carbon filter
The active carbon filter is the key device, commonly used for removal of organic substance and heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water. The system is a pressure filter. In the filter, the quartz and Coconut shell activecarbon bed are employed. The activated carbon is equipped with vent valving at the highest point and adrain connection at the lowest point. The internal systems and components for each tank is constructed of frp material.
3) Security filter ( Cartridge Filters)
The security filter is most commonly used for treat water. The whole system adopts one set of stainless filter. There are 5 pieces of polypropylene in every 5μ Filter cartridges, filtering the vast majority of particles in the water, which eases the load of RO membrane. This process of filtration benefits to the filter cartridge and prolongs its lifetime in the system.
This apparatus contains filtration component and stainless support layers. The support layer is made of stainless steel 304, with the advantages of compact structure, beautiful shape, high flux, good filtration accuracy and etc. This apparatus is fitted with air drain valve and bottom air drain valve and side drain valve.
4) Reverse Osmosis Modules( RO)
RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.
5) Piping, Valves & Fittings
The pipe, valves and fittings (including tubing) ball valves, butterfly valves, piping used to the system is SS304. Reverse Osmosis Modules is equipped with sample valve for the convenience to check the product water.
6) Control devices
The whole automatic production line is achieved through the converter and PLC programmer and data collector such as the liquid lever sensor, flow sensor and etc. The whole production line is monitored by remote computer. When the water level of the product water tank is high, the system will stop automatically. When the water level of the product water tank is low, the system will run automatically.

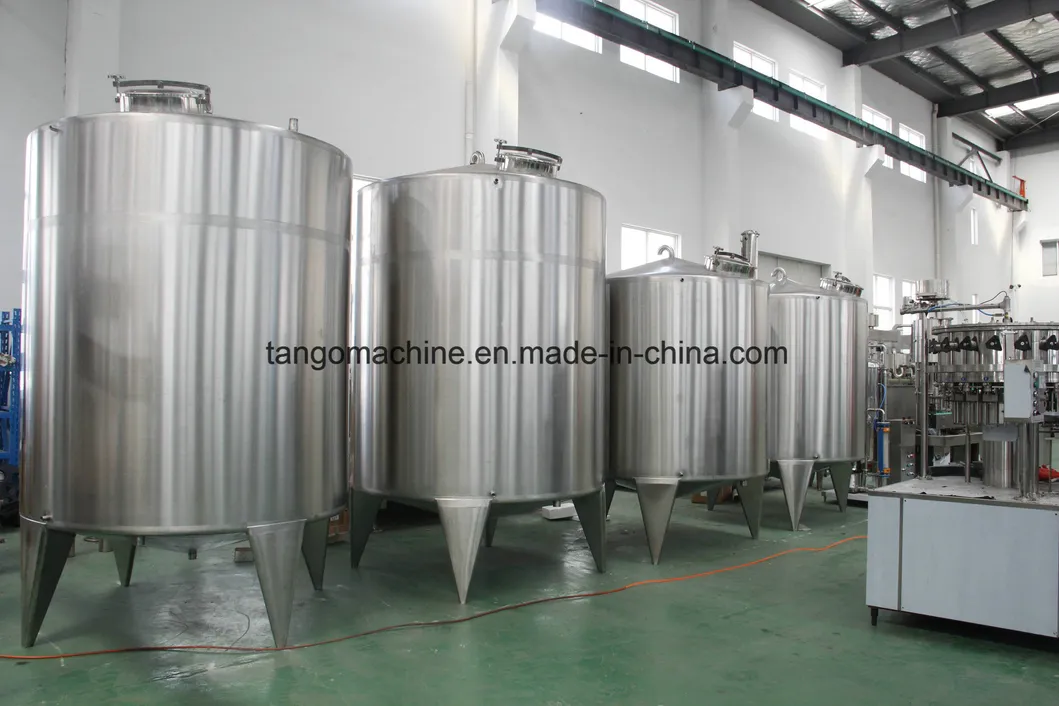

High thickness water saving tank 2-3mm thickness

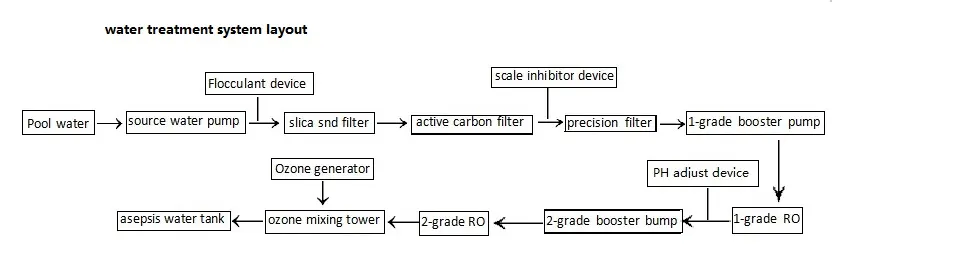

Layout:

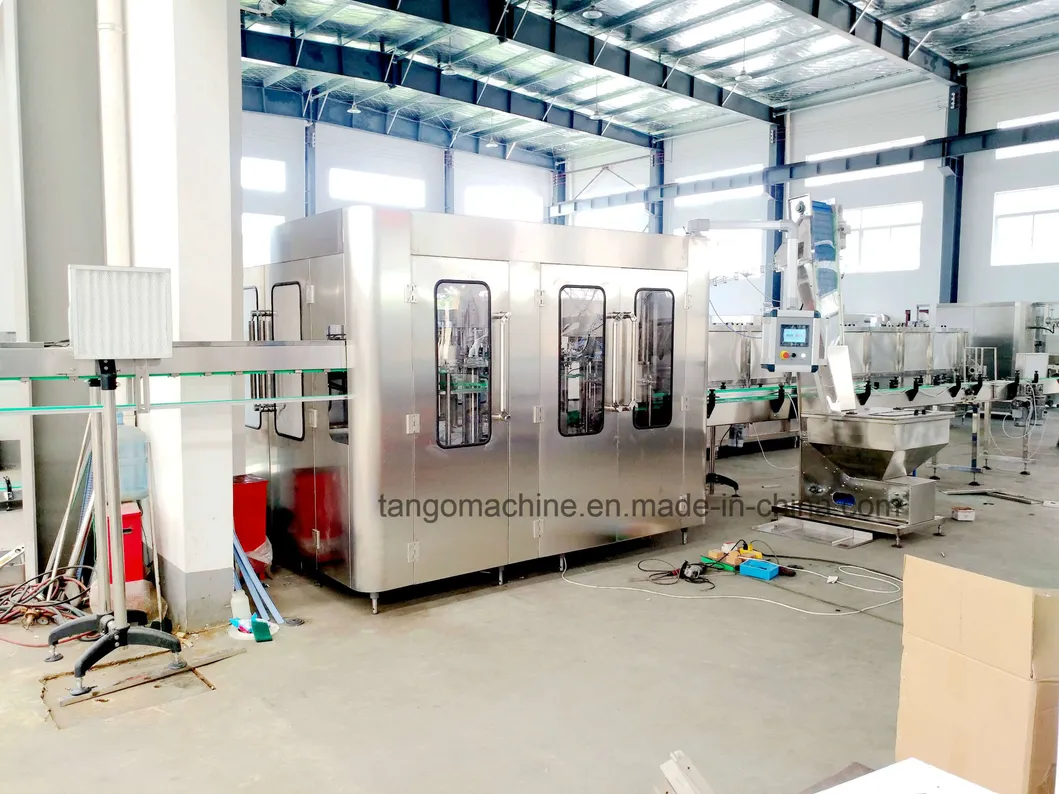

Filling machine-product description:
General description:
This machine adopt to bottle block neck transit technology, realize full auto sterilizer, bottle washing, juice filling or pulp filling,capping ect technology, high auto degree; pulp filling machine adopt to volume filling technology. Match complete temperature control system and reflux sytem, set complete auto cleaning system and control program, match liquid contact spare parts full use super stainless steel material and food degree rubber.

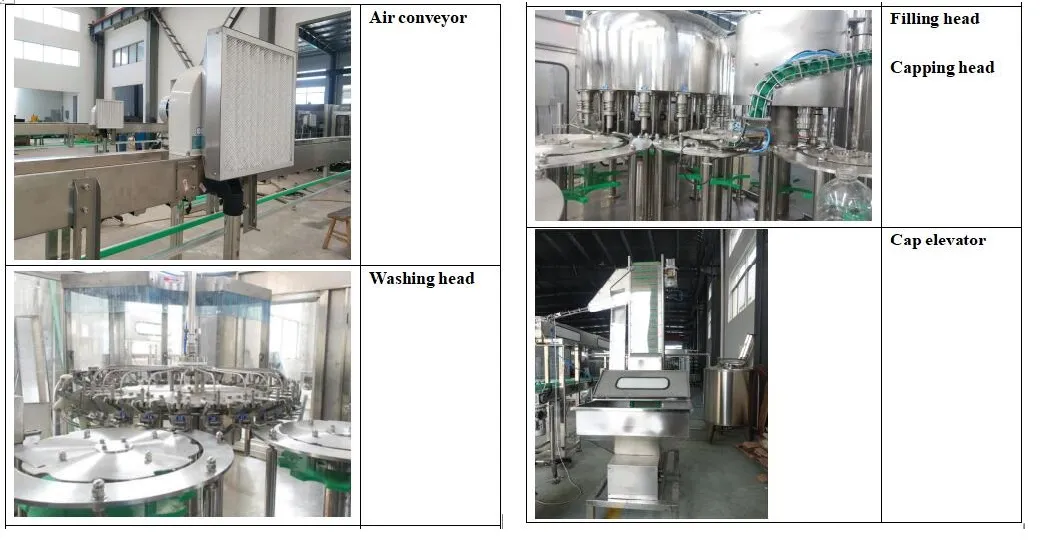

Filling machine inner fracture:
Auxiliary machines

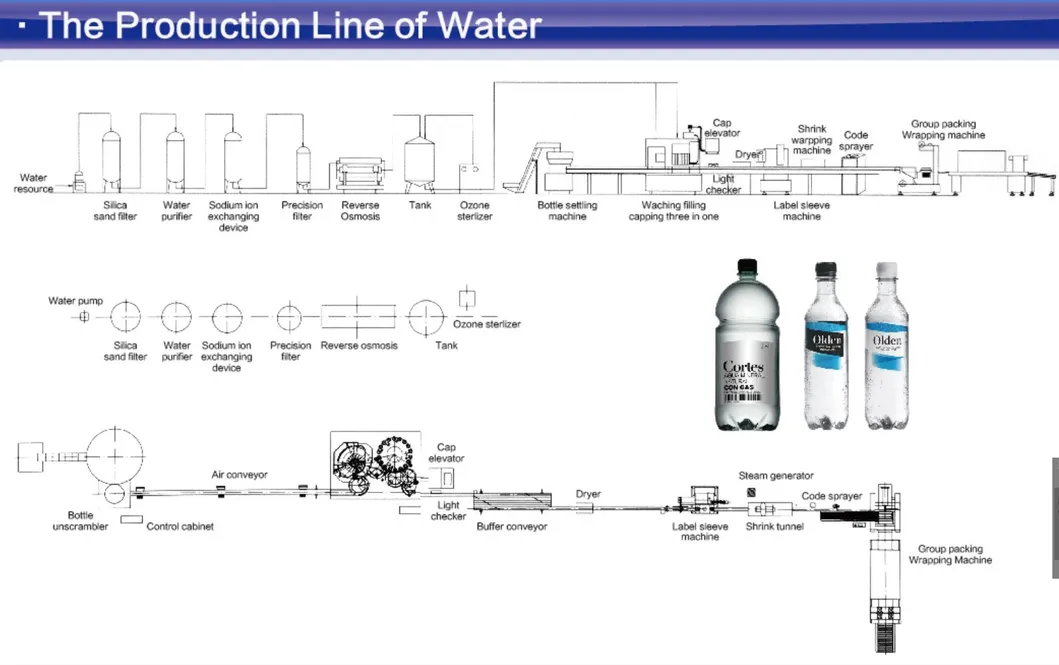

Flow chart:

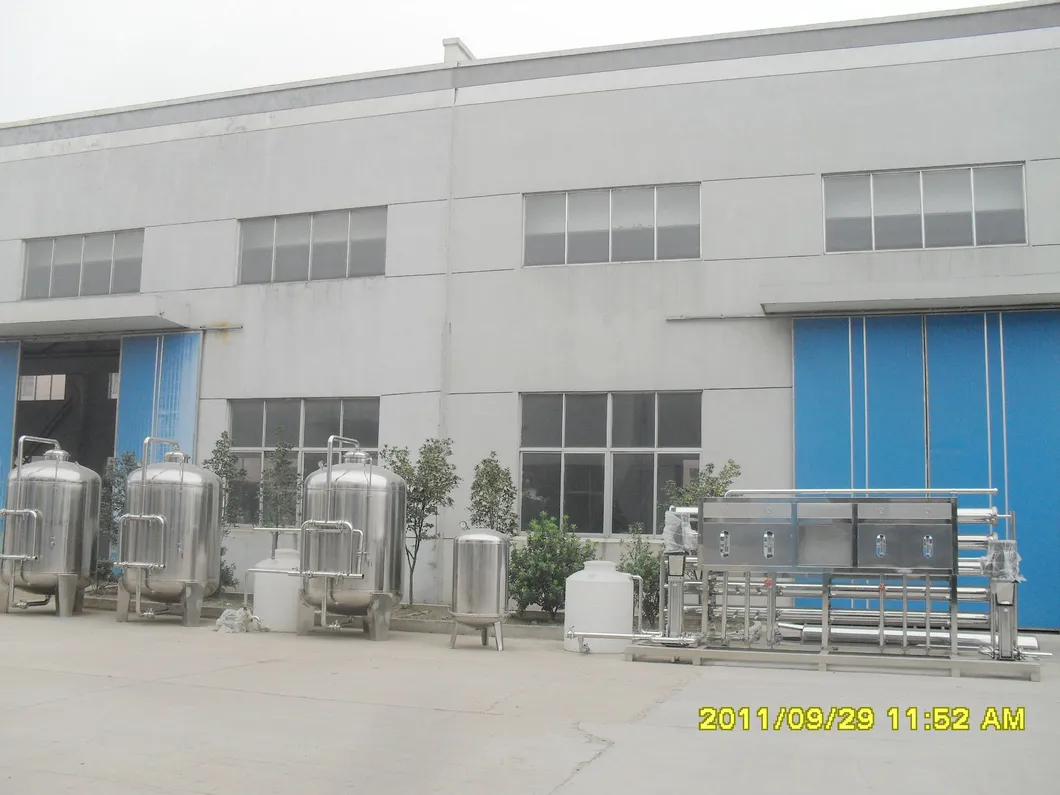

Workshop photo:
Package photos prepare to ship
Usage:
Reverse osmosis principle of work is as pure water and saline were ideal semipermeable membrane separated by a semipermeable membrane, it only allows water to pass through while preventing salt water side of the membrane by, the water will spontaneously through a semipermeable membrane into the saline side, this phenomenon is called osmosis, if compression forces in the membrane of the saline side, the water spontaneous flow will be inhibition and slow down, when the pressure reaches a certain value, the net flow of water through the membrane is equal to zero, the pressure is called the osmotic pressure exerted on the membrane, when the saline side pressure is greater than the osmotic pressure, water flow is reversed, the, saline in the water will flow into the pure water side, the phenomenon is water reverse osmosis (RO) processing.
Component:
Item assembly
Stainless steel high pressure membrane crake
RO high pressure bump 2set, nanfang bump
All kind indicator, pressure indicator, electricity magnetism ,balance device and pipeline valve system
Online pressure auto protection device
Online electricity indicator (comply for stability)
System safe protection
And alarm system
System frame
Product description:
Summary:
Reverse Osmosis ( RO ) Water Treatment Plant, Ultrafiltration Water System,Brackish Water Purification System,Water Filter System,Water treatment Equipment,Water Desalination System,Water Purifying Solutions.
Reverse Osmosis water treatment machine/ Water Treatment Plant:
Multi-stage media filtration for pre-treatment, and RO unit for main filtration, polishing treatment of UV system and Ozone system.
Parameter:
| Model No. | Capacity (M3/H) | Power (kw) | Recovery Rate (%) | Total land area L* W *H (mm) |
| RO-250 | 0.25 | 1.5 | 50 | 2500*1000*2800 |
| RO-500 | 0.5 | 1.5 | 50 | 2500*1000*2800 |
| RO-1000 | 1 | 2 | 50 | 3500*1200*2800 |
| RO-2000 | 2 | 4 | 50-60 | 6500*1500*2800 |
| RO-3000 | 3 | 4.5 | 55-65 | 7500*1500*2800 |
| RO-4000 | 4 | 6.5 | 55-65 | 7500*1500*2800 |
| RO-5000 | 5 | 11 | 60-70 | 10000*2500*3500 |
| RO-6000 | 6 | 11 | 60-70 | 10000*2500*3500 |
| RO-8000 | 8 | 18 | 60-70 | 10000*3500*3500 |
| RO-10000 | 10 | 20 | 60-70 | 10000*4000*3800 |
| RO-20000 | 20 | 30 | 70-75 | 15000*5000*5000 |
| RO-30000 | 30 | 40 | 70-75 | 20000*6000*5000 |
| RO-50000 | 50 | 50 | 70-75 | 30000*8000*5000 |
Water treatment system
1).Multi-media filter
The multi-media filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.
Diffuser
There is diffuser, installed in the filter. Their main function is to make the compressed air and the water distribute evenly during backwash and water distribution.
2) Active carbon filter
The active carbon filter is the key device, commonly used for removal of organic substance and heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water. The system is a pressure filter. In the filter, the quartz and Coconut shell activecarbon bed are employed. The activated carbon is equipped with vent valving at the highest point and adrain connection at the lowest point. The internal systems and components for each tank is constructed of frp material.
3) Security filter ( Cartridge Filters)
The security filter is most commonly used for treat water. The whole system adopts one set of stainless filter. There are 5 pieces of polypropylene in every 5μ Filter cartridges, filtering the vast majority of particles in the water, which eases the load of RO membrane. This process of filtration benefits to the filter cartridge and prolongs its lifetime in the system.
This apparatus contains filtration component and stainless support layers. The support layer is made of stainless steel 304, with the advantages of compact structure, beautiful shape, high flux, good filtration accuracy and etc. This apparatus is fitted with air drain valve and bottom air drain valve and side drain valve.

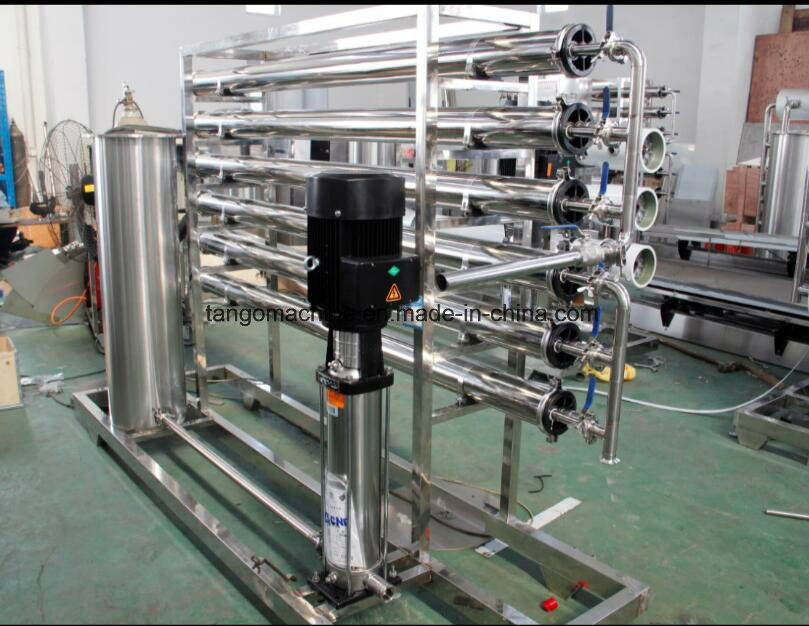

4) Reverse Osmosis Modules( RO)
RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.
5) Piping, Valves & Fittings
The pipe, valves and fittings (including tubing) ball valves, butterfly valves, piping used to the system is SS304. Reverse Osmosis Modules is equipped with sample valve for the convenience to check the product water.
6) Control devices
The whole automatic production line is achieved through the converter and PLC programmer and data collector such as the liquid lever sensor, flow sensor and etc. The whole production line is monitored by remote computer. When the water level of the product water tank is high, the system will stop automatically. When the water level of the product water tank is low, the system will run automatically.
High thickness water saving tank 2-3mm thickness
Layout:
Filling machine-product description:
General description:
This machine adopt to bottle block neck transit technology, realize full auto sterilizer, bottle washing, juice filling or pulp filling,capping ect technology, high auto degree; pulp filling machine adopt to volume filling technology. Match complete temperature control system and reflux sytem, set complete auto cleaning system and control program, match liquid contact spare parts full use super stainless steel material and food degree rubber.

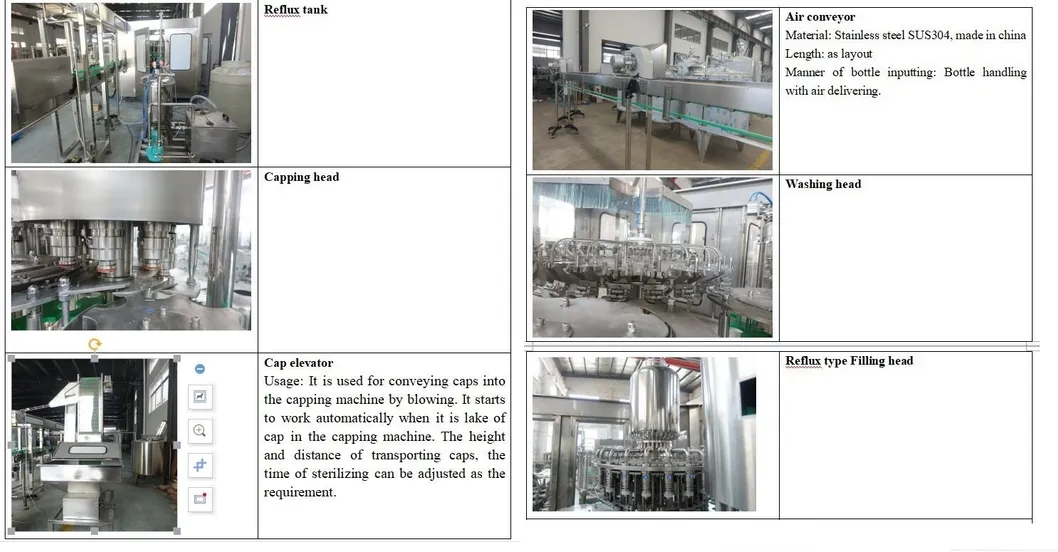

Filling machine inner fracture:
| Model (CGFB) | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 |
| Washing head | 16 | 18 | 24 | 32 | 40 | 50 |
| Filling head | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping head | 6 | 6 | 8 | 10 | 12 | 15 |
| Capacity(500ml) | 4000BPH | 6000BPH | 1000BPH | 1200BPH | 16000BPH | 24000BPH |
| Power | 3.8kw | 4.3kw | 6.5kw | 8.7kw | 9.5kw | 12kw |
| Overall size L*W*H | 3050*2000*2400mm | 3170*2070*2400mm | 4070*2350*2400mm | 5100*2600*2400mm | 6250*3050*2400mm | 7500*3900*2400mm |

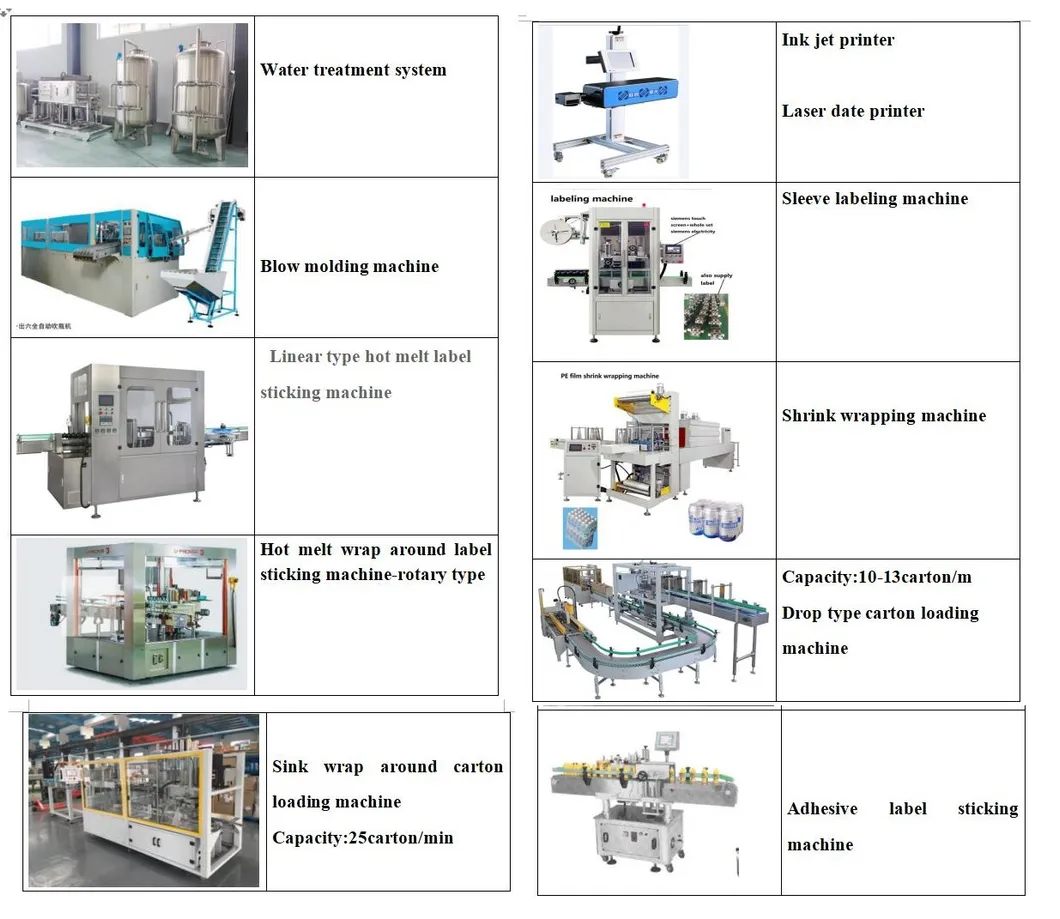

Auxiliary machines
Flow chart:

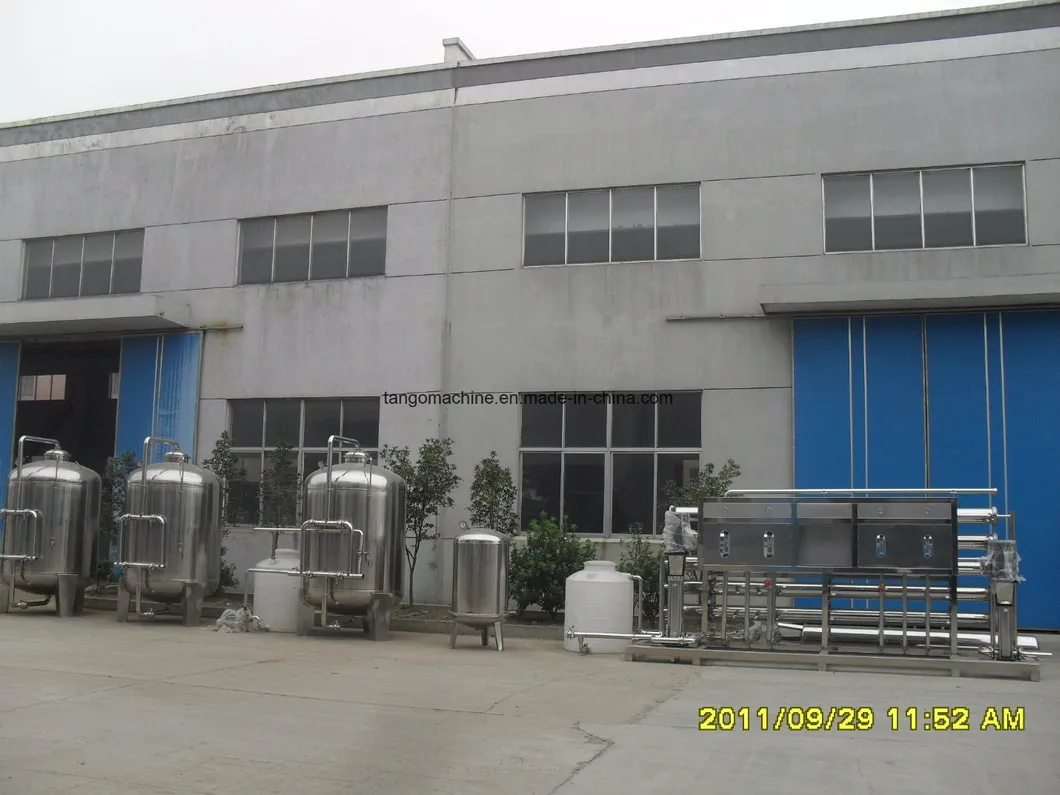

Workshop photo:
Package photos prepare to ship
