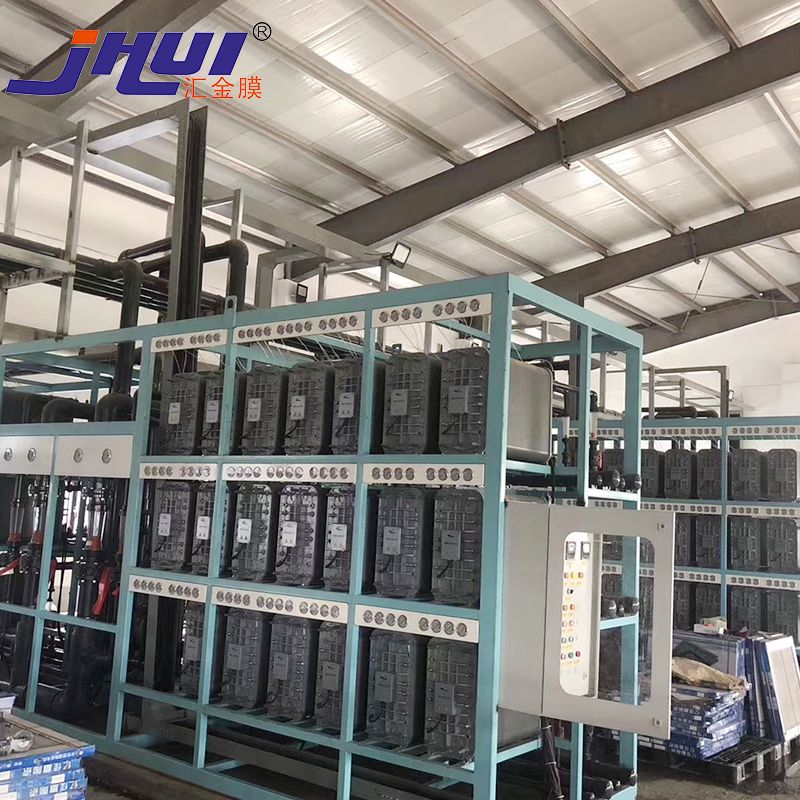

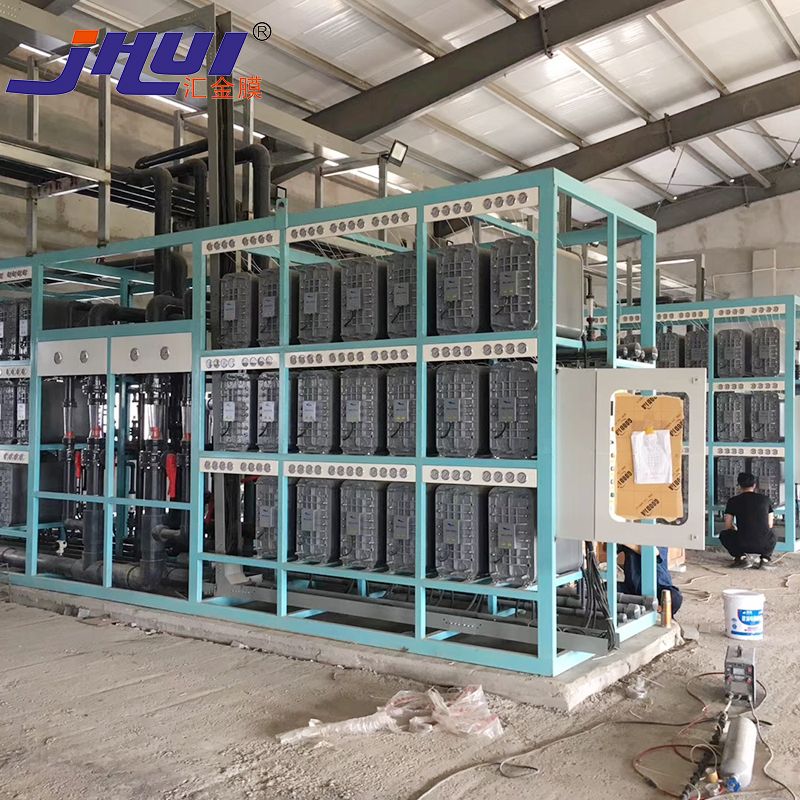

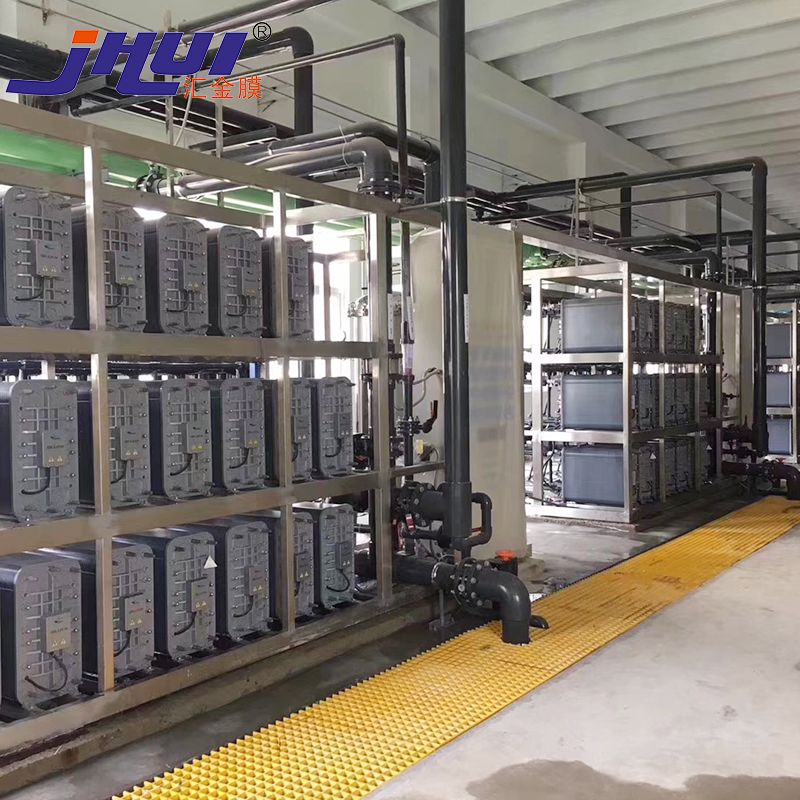

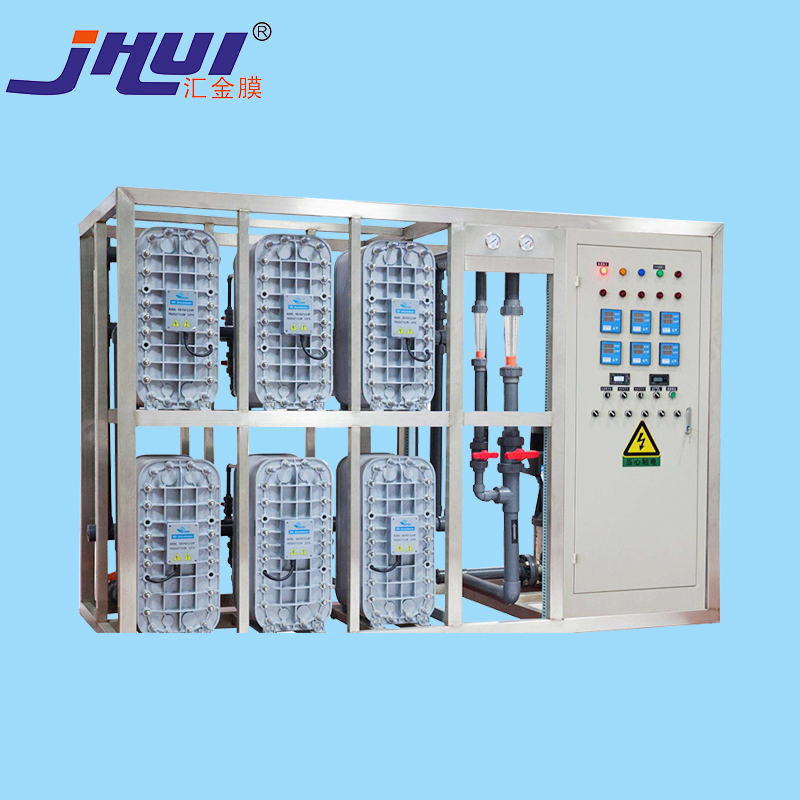

RO Water Purification System with 1000lph EDI System
EDI is a new type of ultra-pure water technology developed in the 1990s, Its development is a revolutionary advance in thehistory of pure water production technology. EDI can replace traditional ion exchange technology, produce stable deionizedwater. Unlike the hybrid ion exchange device, the EDI sy......
Send Inquiry
Product Description
EDI is a new type of ultra-pure water technology developed in the 1990s, Its development is a revolutionary advance in the
history of pure water production technology. EDI can replace traditional ion exchange technology, produce stable deionized
water. Unlike the hybrid ion exchange device, the EDI system does not require chemical regeneration, and does not have to
be stopped for Adding resins or chemical regeneration. Therefore, EDI can achieve continuous production of water, and
water quality is stable. Meanwhile, equipment investment and operating expenses are minimized.

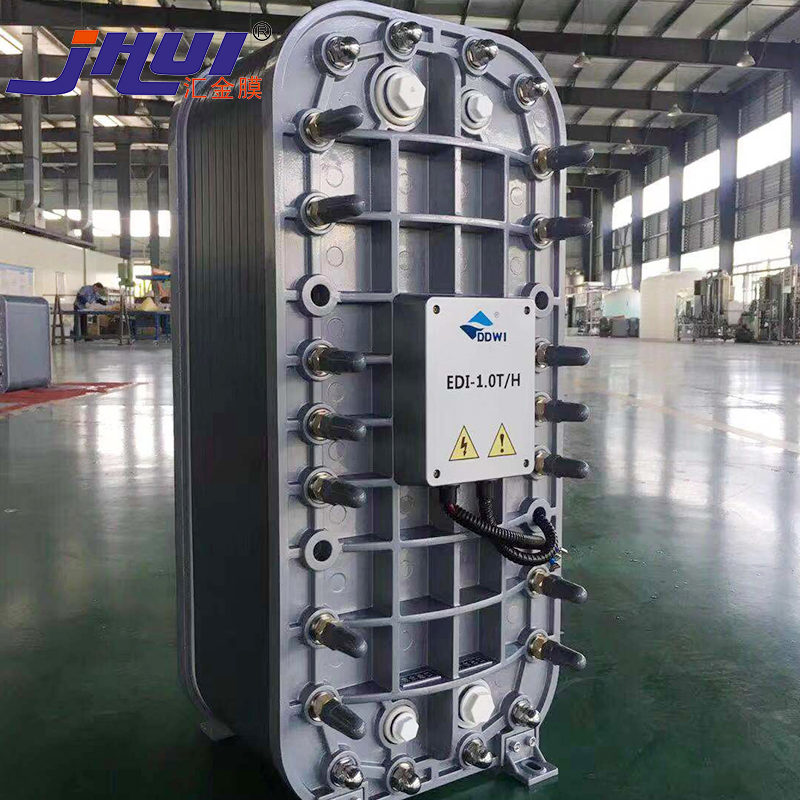

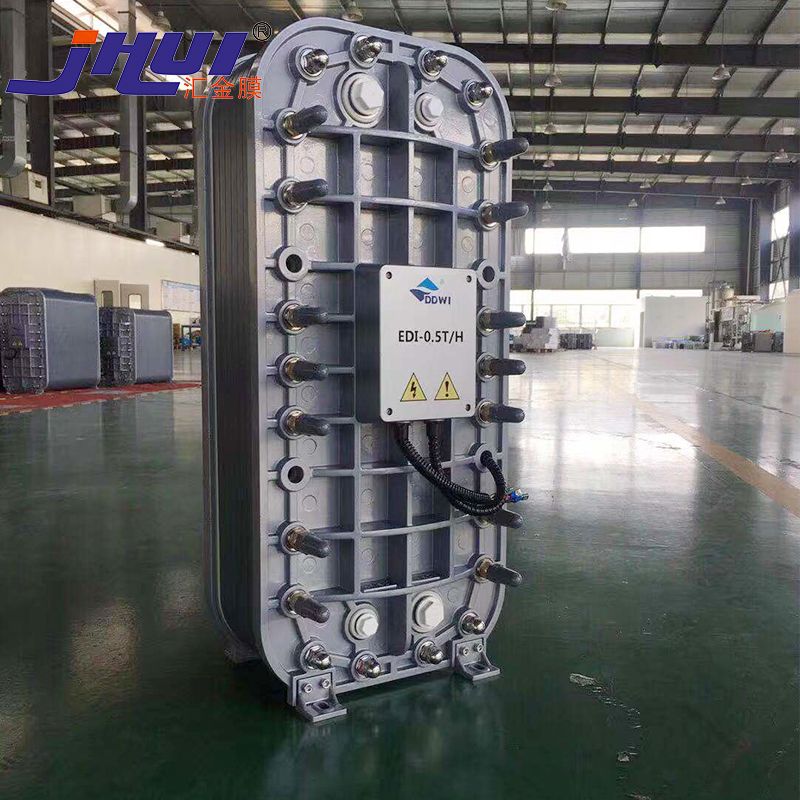

EDI is usually combined with reverse osmosis and other purification devices to remove ions from water. Ion exchange resins
in the EDI module can be divided into two parts, which are called work resin and the other part is called polishing resin.
The boundary of the two is called the working frontier. The work resin takes the task of removing most of the ions, while
the polishing resin takes the task of removing the more difficult ions such as weak electrolytes.The electrical conductivity
of the EDI system can be as high as 15-18.2 MΩ.cm. EDI can be operated continuously or intermittently.
EDI Technology Feature
Compared with traditional ion exchange method (DI), EDI has the following characteristics:
(1) Higher and stable quality water product;
(2) No need for acid-base regeneration;
(3) Continuous running,simple peration;
(4) Less requirements and cost in installation;
(5) Modular system,more flexible,easy to expand;
(6) No generation chemical waste;
(7) Reduced facility requirements;
(8) Low cost in running and maintenance;
(9) Easy to integrate into existing water systems;
(10) No recirculation-increased reliability.

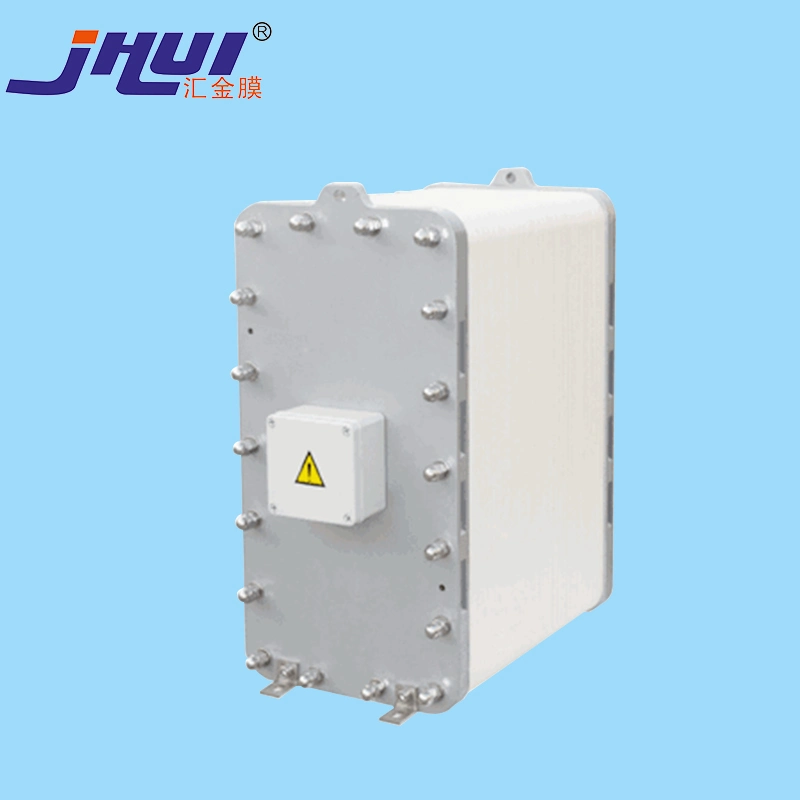

Model | L(mm) | W(mm) | H(mm) | L1(mm) | W1(mm) | a | φ1 | φ2 | φ3 | φ4 |
EDI-P&F-0.5-HP | 152 | 310 | 680 | 195 | 197 | 35 | DN25 (1") | DN25 (1") | DN15 (1/2") | DN15 (1/2") |
EDI-P&F-1.0-HP | 215 | 310 | 680 | 255 | 197 | |||||
EDI-P&F-2.0-HP | 365 | 310 | 680 | 410 | 197 | |||||
EDI-P&F-3.0-HP | 520 | 310 | 680 | 550 | 197 | |||||
EDI-P&F-4.0-HP | 665 | 310 | 680 | 705 | 197 |
Story of us was since 2007.
Jinhuimo is meeting a global need for clean water through membrane solutions.

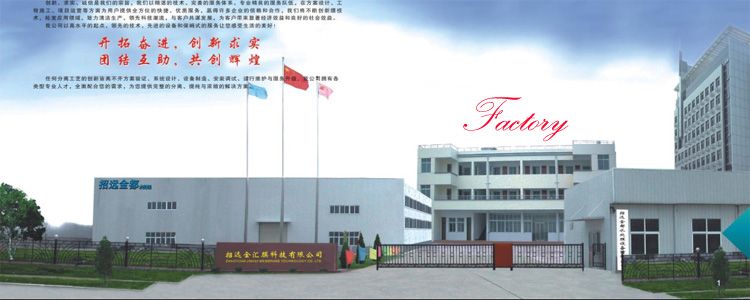

Shandong Jinhuimo Technology Co.,Ltd manufactures the membrane for water treatment.
