Product Description
Product Description

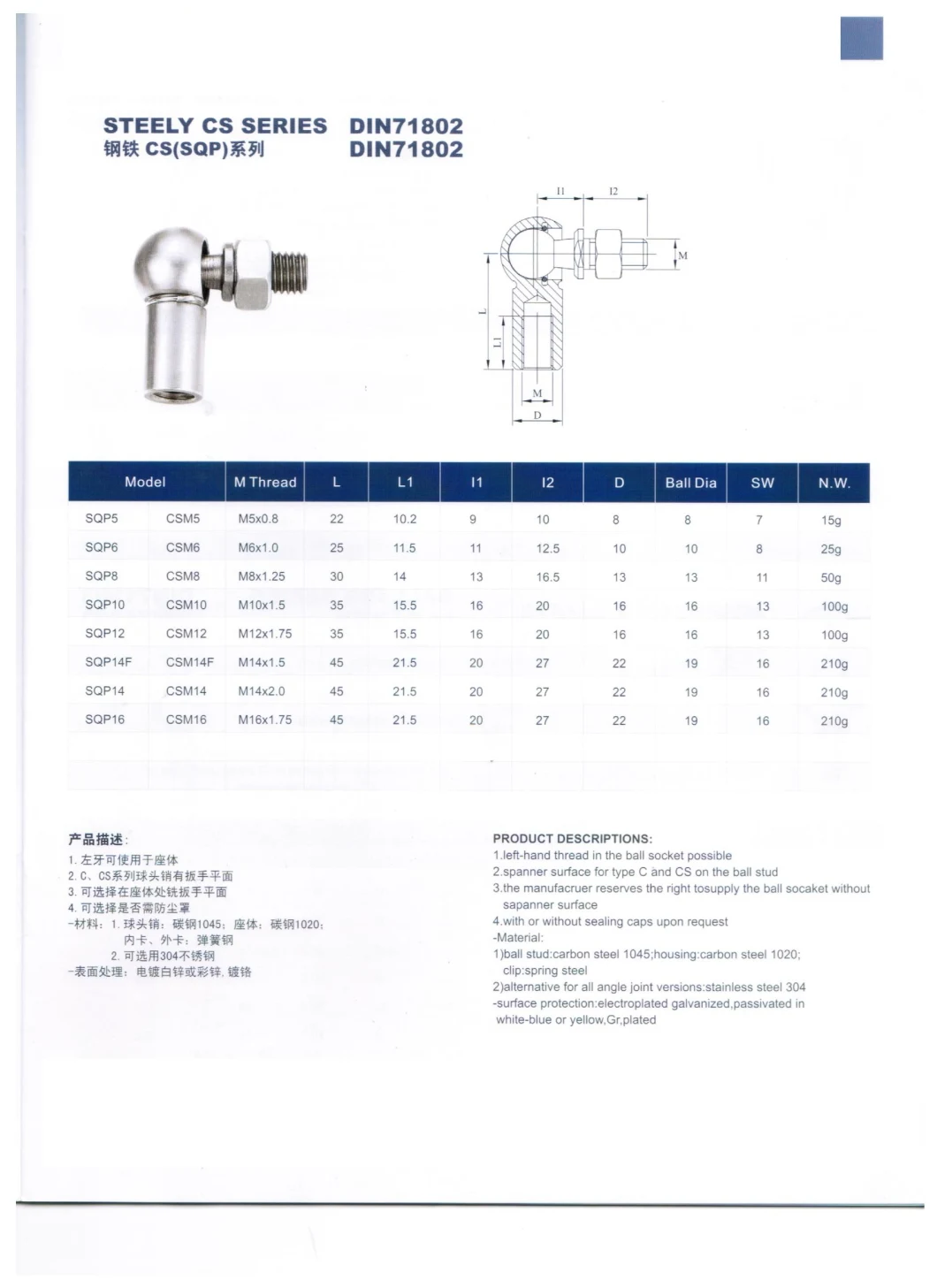

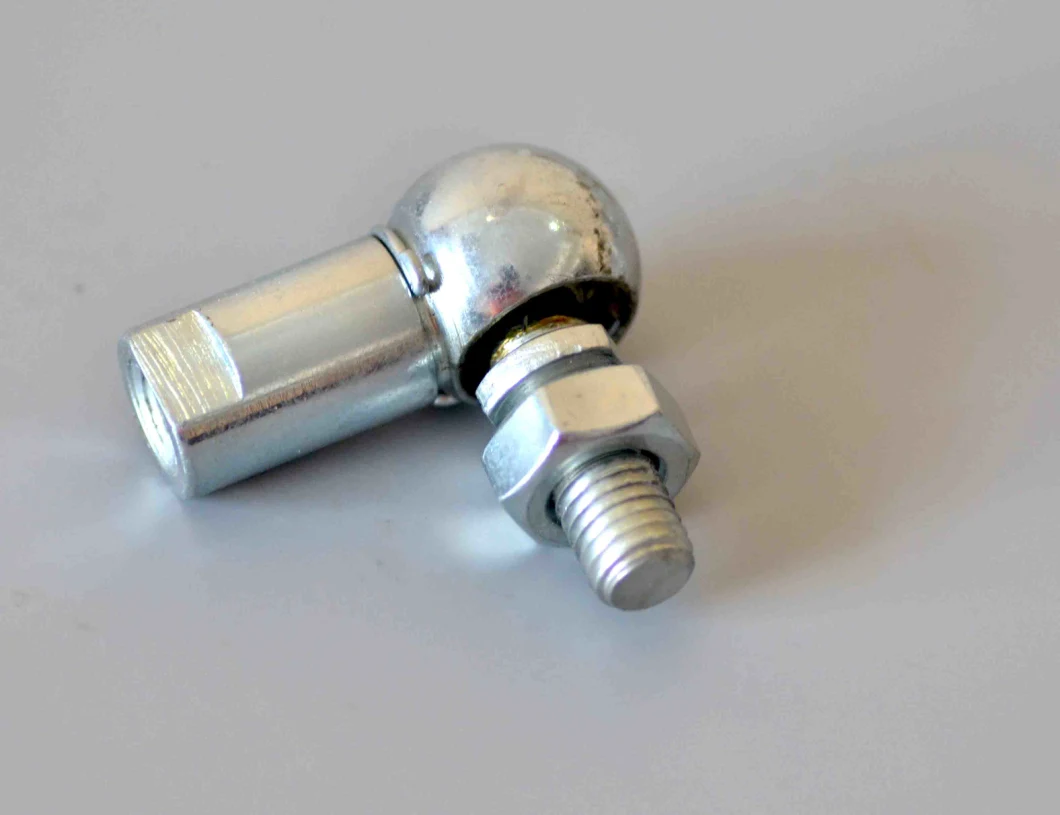

steel ball joint bearing CSM5
| Part NO. | D1 | D2 | D3 | D4 | L1 | L2 | L3 | T | SW | min.Separation Force(N) |
| ±0.3 | ±0.3 | ±0.3 | min. | h14 | ||||||
| CS8M5 | 8 | M5X0.8 | M5X0.8 | 8 | 22 | 10.2 | 9 | 10.2 | 7 | 30 |
| CS10M6 | 10 | M6X1 | M6X1 | 10 | 25 | 12.5 | 11 | 11.5 | 8 | 40 |
| CS13M8 | 13 | M8X1.25 | M8X1.25 | 13 | 30 | 16.5 | 13 | 14 | 11 | 60 |
| CS16M10 | 16 | M10X1.5 | M10X1.5 | 16 | 35 | 20 | 16 | 15.5 | 13 | 80 |
| CS16M12 | 16 | M12X1.75 | M12X1.75 | 16 | 35 | 20 | 16 | 15.5 | 13 | 80 |
| CS19M14 | 19 | M14X2 | M14X2 | 22 | 45 | 28 | 20 | 21.5 | 16 | 100 |
| CS19M14X1.5 | 19 | M14X1.5 | M14X1.5 | 22 | 45 | 28 | 20 | 21.5 | 16 | 100 |
