              Broad Pulse Width 380V 315/400AMP Portable Welding Machine

              Broad Pulse Width 380V 315/400AMP Portable Welding Machine

              Product DescriptionProduct DescriptionFunctions: Constant TIG, pulse TIG, manual arc welding, spot weldingApplication industry: petrochemical, pressure vessel, power construction, shipbuilding, bicycle, nuclear power, pipeline installationCharacteristics1.IGBT high frequency soft swit......

              Send Inquiry

              Product Description

              Product Description

              Product Description

              Functions: Constant TIG, pulse TIG, manual arc welding, spot welding
              Application industry: petrochemical, pressure vessel, power construction, shipbuilding, bicycle, nuclear power, pipeline installation

              Characteristics
              1.IGBT high frequency soft switch conversion, high efficiency, small size, light weight; with foot control pot selection (optional)
              2.The machine uses single-chip high-performance software control and has good adjustment performance. One machine with multiple functions is easy to use.
              3.The machine adopts passive power factor correction, the power factor is high; easy to arc starting, stable arc, high welding quality
              4.Air supply in advance, Lag gas stopping, pulse width adjustment, cleaning ratio and the size of thrust during electric welding, all can be preset
              5The machine can be used for welding carbon steel, copper, titanium, aluminum, aluminum-magnesium alloy and other metal

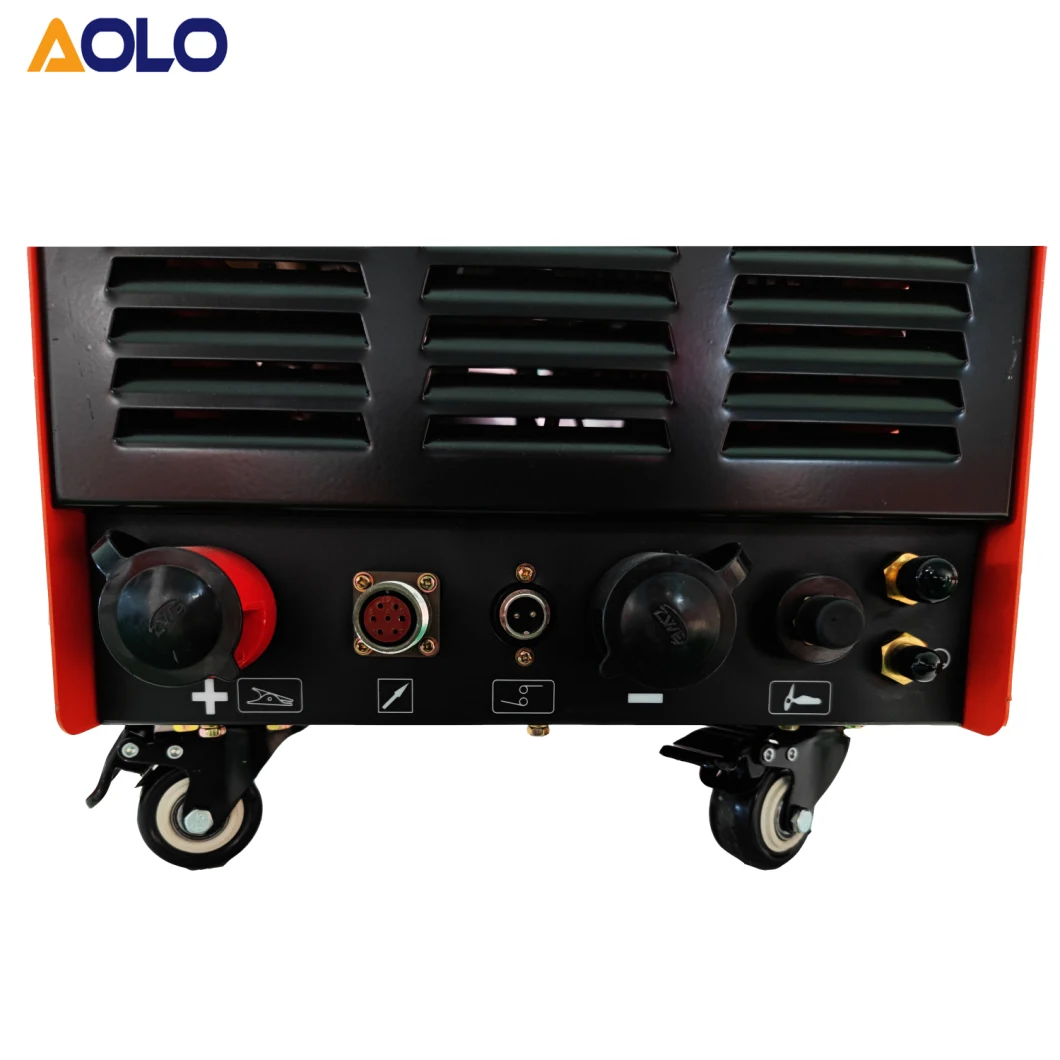

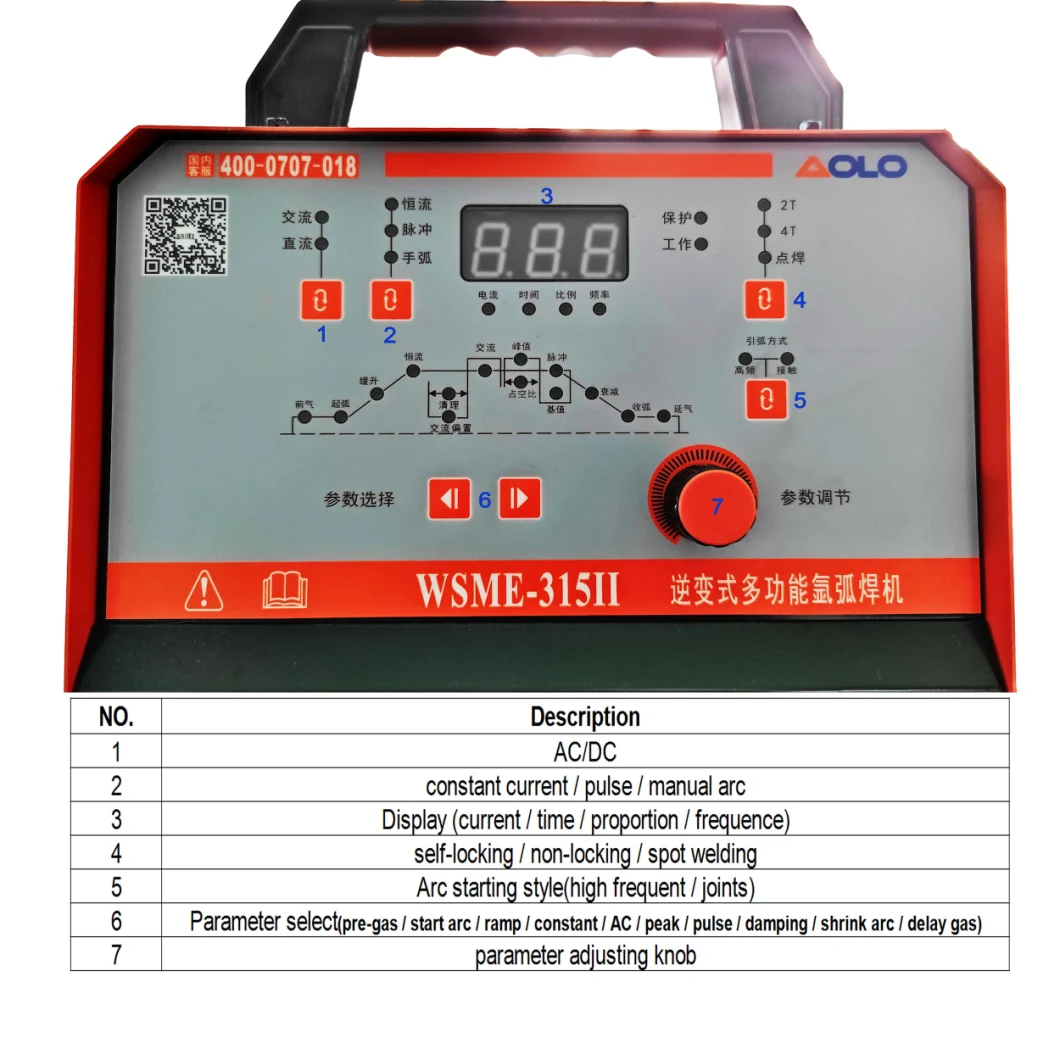

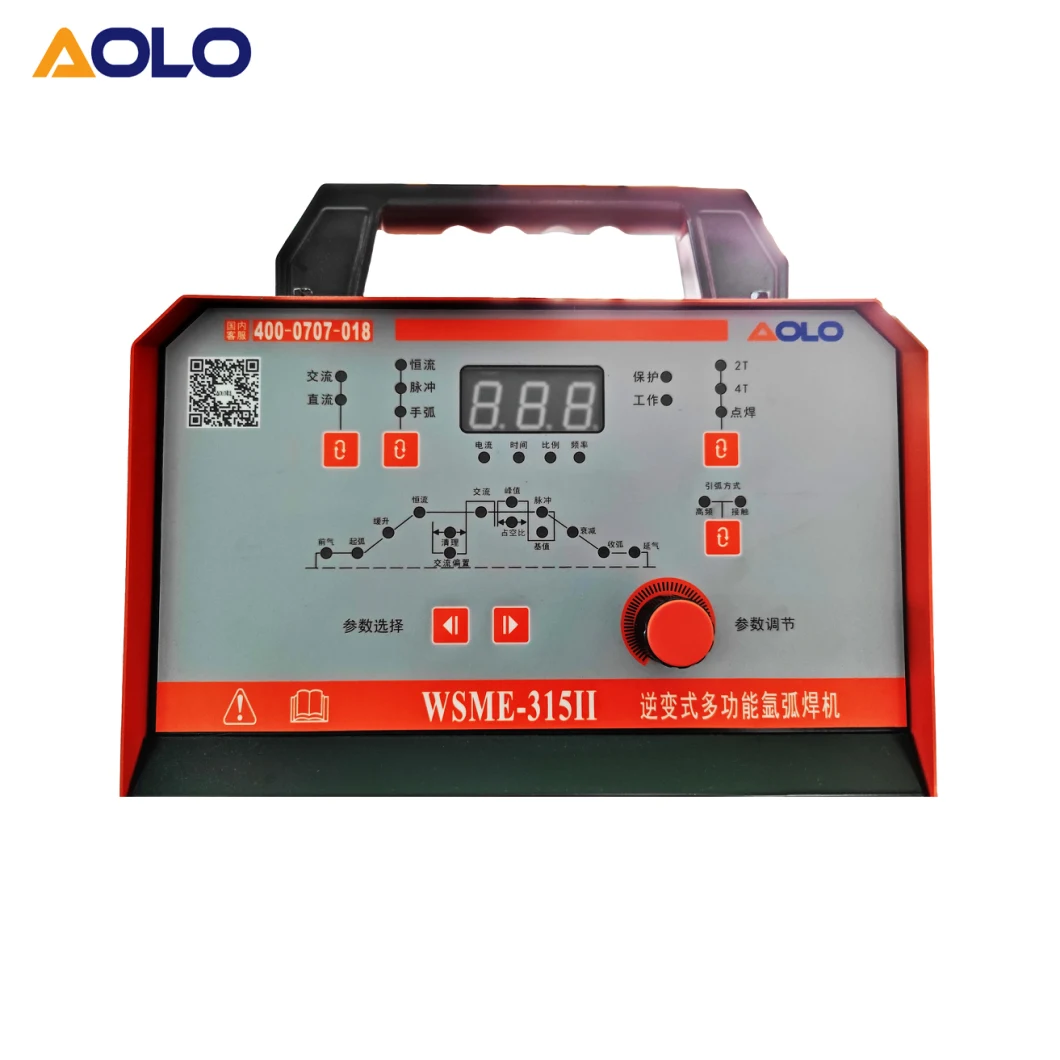

              Detailed Photos
              Broad Pulse Width 380V 315/400AMP Portable Welding Machine
              Broad Pulse Width 380V 315/400AMP Portable Welding Machine

              Broad Pulse Width 380V 315/400AMP Portable Welding Machine



              Accessories
              Standard accessoriesOptional accessories
              1. 1 set of 5m water cooling argon arc welding torch
              2. 1 set of 2m grounding cable
              3. 1 piece of copper connector
              1. Argon gas meter(25L/min)
              2. Electrode welding plier
              3. Welding machine cart
              4. Water tank
              5. Foot switch
              6. Water pipe, gas pipe
              Product Parameters
              Model                                     Unit                       WSME-315                                   WSME-400
              Rated input voltage      V/Hz                   AC380V±10% / 50                    AC380V±10% / 50
              Rated input capacity      KVA                             9.3                               18.2
              Rated input current        A                           14.4                               29.7
              Adjust the range of welding current        A                           5~315                              5~400
              Rated load duty cycle        %                             60                                 60
              Pulse frequency        %                     -40% ~ +40%                        -40% ~ +40%
              Adjust the range of pulse width        %                        10%~90%                           10%~90%
              Current rise time         S                          0.1~15                              0.1~15
              Current fall time         S                          0.1~15                              0.1~15
              Full load efficiency        %                              92                                 92
              PF         λ                             0.95                                0.95
              Dimensions       mm                     310×530×590                        310×530×590
              Weight        kg                              32                                 35

              Certifications

              Broad Pulse Width 380V 315/400AMP Portable Welding Machine

              Packaging & Shipping

              Broad Pulse Width 380V 315/400AMP Portable Welding Machine

              Company Profile

              Broad Pulse Width 380V 315/400AMP Portable Welding Machine

              FAQ

              1. Are you a factory or trading company?
              We are the manufacturer of welding equipment, plasma cutting machine and stud welding machine
              2. Where is your factory located?
              Our company is in Innovation and Entrepreneurship Park, Taizhou City, Jiangsu Province. Welcome to visit our factory!
              ☆10 minutes to Taizhou bus station by car
              ☆20 minutes to Yangzhou and Taizhou Airport by car
              ☆2.5 hours to Shanghai
              3. What certificates do you have?
              We have gained the certificate of CCC, CE, ISO, ROHS
              4. Can you do OEM?
              Yes, we accept OEM
              5. What's your MOQ?
              1 set is available. Different products has different minimum order quantity.
              6. What's your delivery time?
              The delivery time needs to be decided according to the specific quantity. It usually takes about 30 days after confirming details of the order.
              7. What's your warranty?
              Our each machine should be 100% tested before delivery and has one year warranty
