Ceiling Filter (Diffusion Media) Synthetic Fiber-Based Nonwoven Filter Products
Product DescriptionSpeciality:· For general industrial painting.· Gradient Density Structure, the fiber density increases gradually towards pure air;· Fully impregnated with adhesive treatment· Clean air side can be fiberglass net or TC cloth net.Specification:Material 100% ......
Send Inquiry
Product Description
Product Description
Speciality:

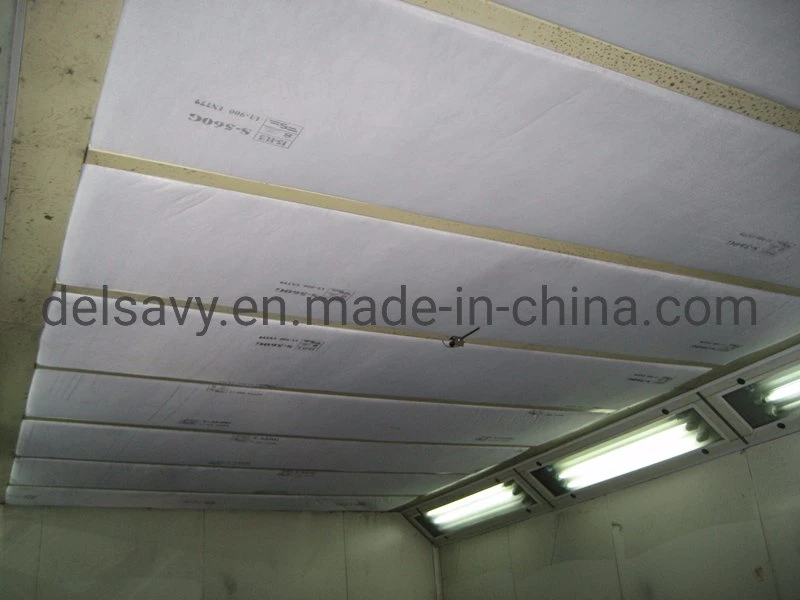

· For general industrial painting.
· Gradient Density Structure, the fiber density increases gradually towards pure air;
· Fully impregnated with adhesive treatment

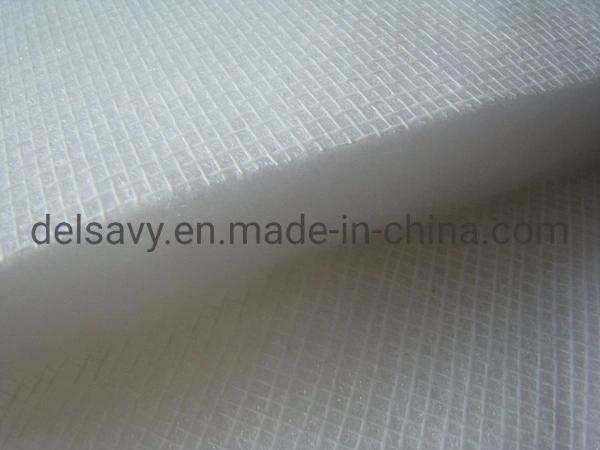

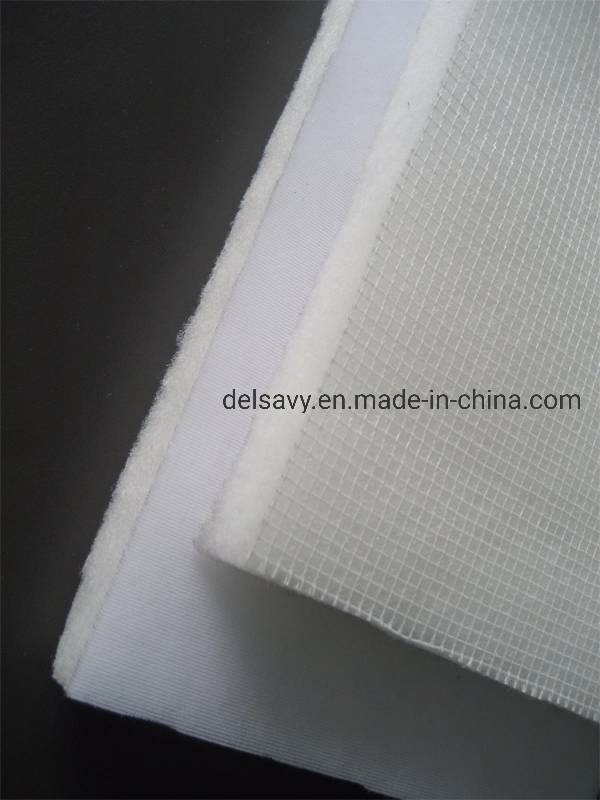

· Clean air side can be fiberglass net or TC cloth net.
Specification:
· For general industrial painting.
· Gradient Density Structure, the fiber density increases gradually towards pure air;
· Fully impregnated with adhesive treatment
· Clean air side can be fiberglass net or TC cloth net.
Specification:
| Material | 100% polyester fibres |
| Filter efficiency | 98% |
| Weight | 600 g/m2 |
| Air velocity | 0.25m/S |
| Rated air flow | 900 m³/h |
| Initial resistance | 35Pa |
| Final resistance | 400Pa |
| Dust holding capacity | 450 g/sqn |
| Maximum temperature | 120ºC |
| Normal thickness | 22mm |
| Filtration class | F5 |
