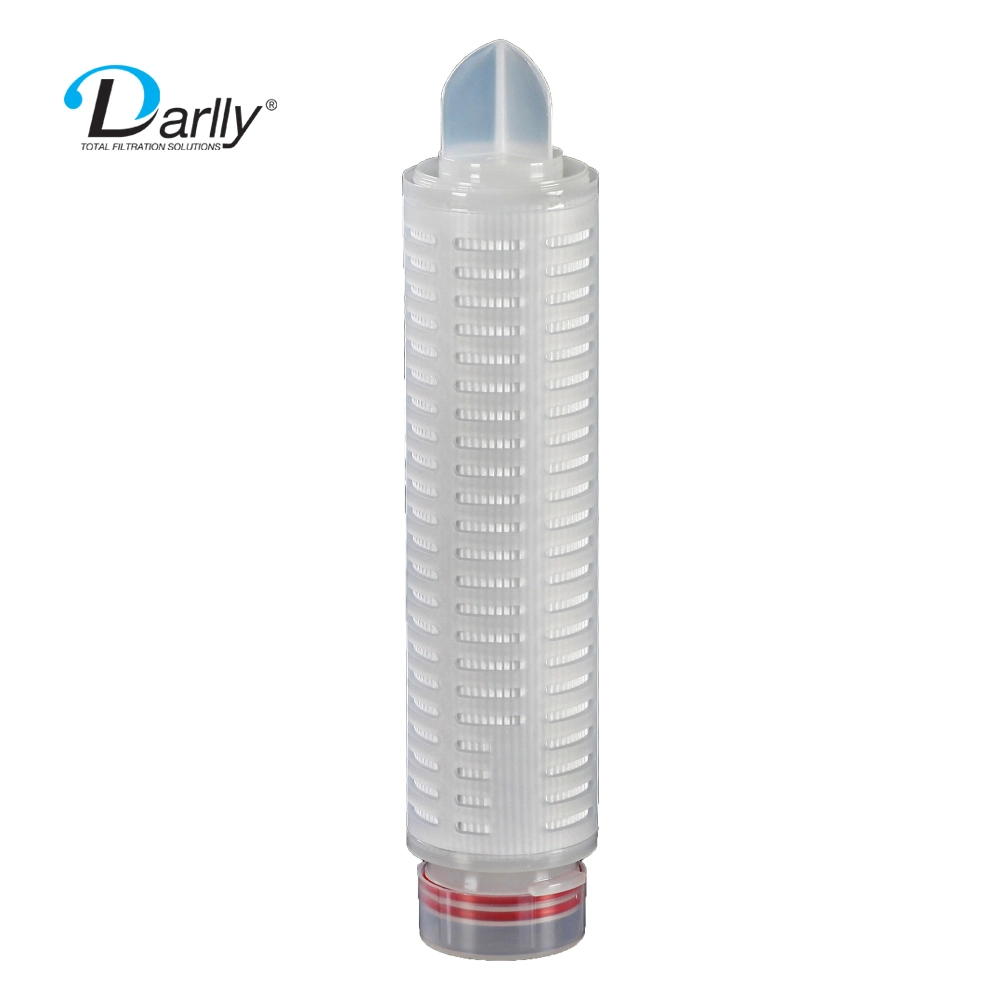

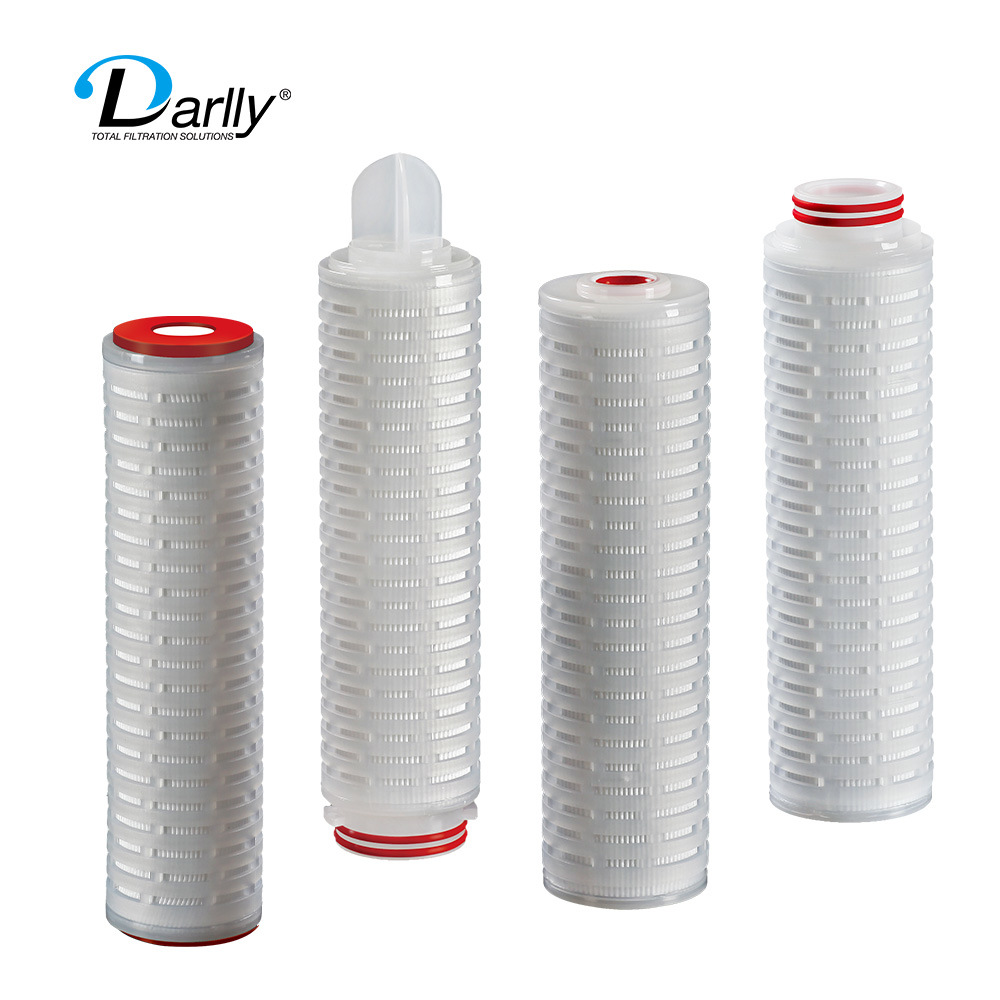

              Darlly Double Layer Nylon66 Pleated Filter Cartridges for Pharmaceutical Liquid Filtration

              Darlly Double Layer Nylon66 Pleated Filter Cartridges for Pharmaceutical Liquid Filtration

              Product DescriptionSCD Series filter cartridge uses absolute rated nylon 66 membrane that is inherently hydrophilic and has excellent chemical resistance,it is manufactured without the use of gules,adhesives or wetting agents,ensuring high purity in every application.Applications- Pharmaceutica......

              Send Inquiry

              Product Description

              Product Description

              SCD Series filter cartridge uses absolute rated nylon 66 membrane that is inherently hydrophilic and has excellent chemical resistance,it is manufactured without the use of gules,adhesives or wetting agents,ensuring high purity in every application.
              Darlly Double Layer Nylon66 Pleated Filter Cartridges for Pharmaceutical Liquid Filtration
              Darlly Double Layer Nylon66 Pleated Filter Cartridges for Pharmaceutical Liquid Filtration

              Applications
              - Pharmaceutical
              - Organic solvents and aqueous co-solvent systems
              - High purity water filtration

              Features
              - Hydrophilic Nylon 66 membrane,no wetting agents
              - Double layer media,absolute rated filtration
              - High flow and long service life
              - Superior chemical resistance
              - Enhanced resistance to in-line and autoclave steam sterilization
              - 100% integrity tested

              Darlly Double Layer Nylon66 Pleated Filter Cartridges for Pharmaceutical Liquid FiltrationQuality
              - Filter Cartridges are manufactured in a 100000 class clean room environment
              - Manufactured according to ISO9001:2015 certified quality management system
              - All pp components meet the specifications for biological safety per USP Class VI-121ºC for plastics
              - The extractable level was not more than 25mg per 10 inch cartridge

              Product Specifications
              DimensionsOuter Diameter69mm
              Length5", 10", 20", 30", 40"
              Material of ConstructionsMediaNylon 66
              SupportPET
              Core/Cage/End CapPP
              Seal MaterialSilicone/EPDM
              PerformanceMax Operating Temperature80ºC
              Max Operating DP4.0 Bar @ 25ºC, 2.4 Bar @ 80ºC
              Steam Sterilization125ºC,30 minutes, 30 times

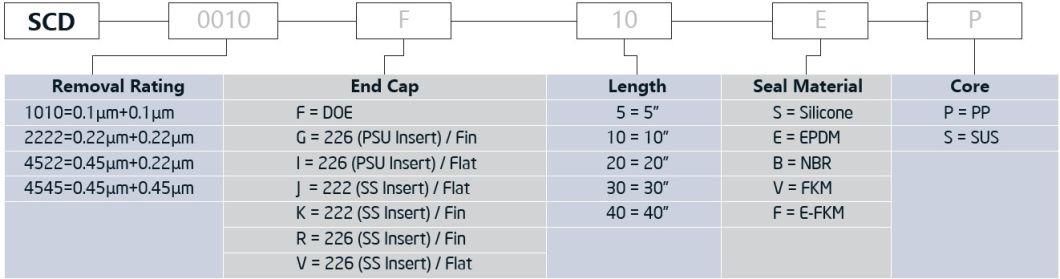

              Ordering Information
              Darlly Double Layer Nylon66 Pleated Filter Cartridges for Pharmaceutical Liquid Filtration
