Product DescriptionCompany Introdction Weifang Zhenxing Rubber Co. Ltd.,founded in 1980, covers an area of 80, 000m2, with both output value and assets of over 100M rmb . We are a leading manufacturer of Conveyor Belts in China. With 40 years of practical experience in manufactu......
Weifang Zhenxing Rubber Co. Ltd.,founded in 1980, covers an area of 80, 000m2, with both output value and assets of over 100M rmb . We are a leading manufacturer of Conveyor Belts in China. With 40 years of practical experience in manufacturing various Conveyor Belt to suite all applications.
The first goal of us is to work with our customers, figure out the right solution for any belting application, we provide a complete line of belting equipment and relevant accessories. Offer the customer with highest possible grade products but with lowest possible price is what we committed to. With these years working experiences with different customers from different industries enabled us to recommend the right product for different application requirements professionally
Product Name | Conveyor Belt |
Material | Cotton/polyester cotton/nylon/polyester/stainless steel |
Brand Name | ZHENXING RUBBER |
Thickness | 5-25mm |
Length | 30-300m |
Width | 200-1400mm |
Application | Mine,cement plant,steel and Iron factory, metallurgy,construction etc |
Color | Black |

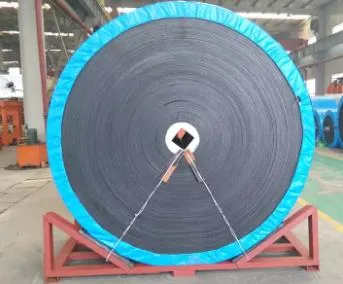

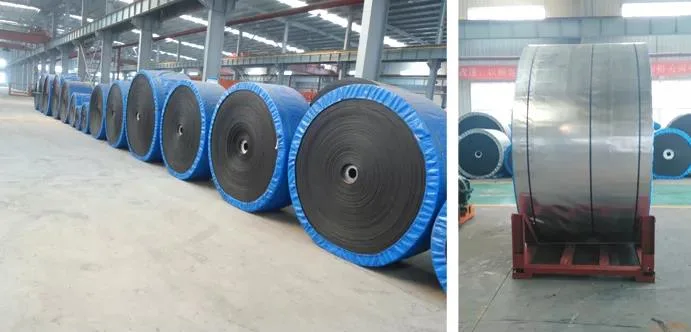

Multi-Ply Conveyor Belt
1.Polyester Conveyor Belt
Material Quality:Less elongation/Less deformed heat/Less affected by moisture
Application:Polyester conveyor belt mainly is called EP conveyor belt for short. Used in mine, cement plant, Steel and Iron factory, metallurgy, construction,posts and etc.Conveyor canvas core of the high initial modulus ,high strength, impact resistance no elongation, stuitable for medium and long-distance.
Structure:
carrying side rubber cover
Rubber gasket
Fabric insert ply(carcass)
Back rubber cover
Rubber capped edge
2.Nylon Conveyor Belt(NN)
Material Quality:High flexible,Highly resistance against impact,Highly bendable
Application:Used in mine, cement plant. Steel and Iron factory, metallurgy, construction, ports and etc.
Feature:Lighter body, Splendid flexibility, high tensile strength, impact resistance, into a good groove, suitable for medium and long-distance, large capacity, highspeed transmission of material.
3.Cotton Conveyor Belt(CC)
Application:Used in mine, cement plant, Steel and Iron factory, metallurgy, construction, ports and etc.
Feature:Traditional conveyor belts,suitble for medium and short distance transportation of materials.
Applicable Standards
Type | Standard and Parameters |
Normal Grade | GB/T 9770-2001, DIN22131, AS1333 |
Heat Resistant | GB/T 2001-2005, T1, T2, T3 |
High Temperature Resistant | GB/T 2001-2005 T4 |
Abrasion & Heat Resistant | Shore Abrasion Rate ≤ 150mm3 |
Abrasion Resistant | Shore Abrasion≤90mm3 DIN22131W, AS1333A |
Standard Flame Resistant | GB 10822-2003 DIN 22102K, DIN 22109V |
Anti-Static | Surface resistance 105Ω |
Cold Resistant | HG/T3647-1999, fragility temperature -50ºC |
Main Technical Parameters
Belt Type | Fabric Type | Single Fabric Strength (N/mm) | Cover thickness (mm) | Plies | Belt Width (mm) | Belt Length (m)/roll | |
Top Cover | Bottom Cover | ||||||
CC | CC-56 | 56 | 3.0-6.0 | 1.5-6.0 | 3-12 | 500-2400 | 200 |
NN | NN100 | 100 | 2-10 | ||||
NN125 | 125 | ||||||
NN150 | 150 | ||||||
NN200 | 200 | ||||||
NN250 | 250 | ||||||
NN300 | 300 | ||||||
NN400 | 400 | ||||||
NN500 | 500 | ||||||
NN600 | 600 | ||||||
EP | EP100 | 100 | 2-8 | ||||
EP125 | 125 | ||||||
EP160 | 160 | ||||||
EP200 | 200 | ||||||
EP250 | 250 | ||||||
EP300 | 300 | ||||||
EP350 | 350 | ||||||
EP400 | 400 | ||||||
EP500 | 500 | ||||||
EP600 | 600 | ||||||
AR | AR1000 | 1000 | 6.0 | 6.0 | 1-2 | 80 |

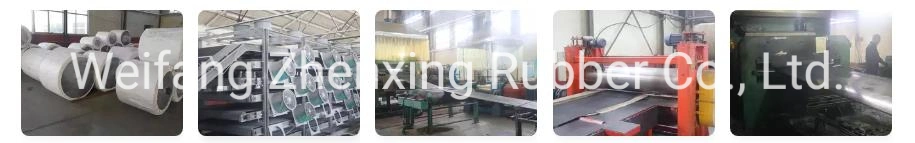

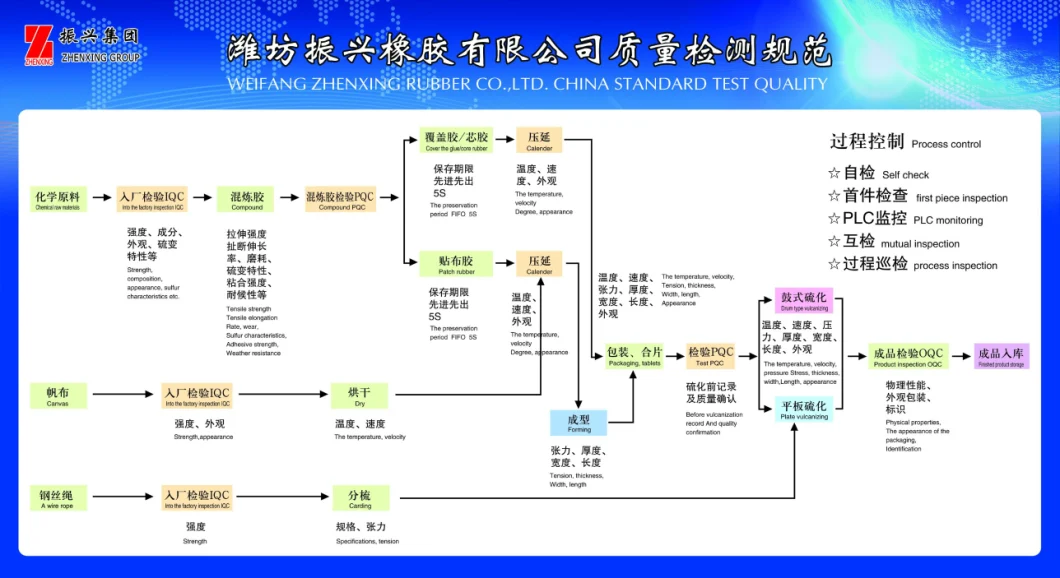

Raw Materials Rubber Mixing Squeezing Assembly Vulcanization
Quantity(meters) | 1 - 1000 | 1001 - 3000 | 3001 - 5000 | >5000 |
Est. Time(days) | 15 | 20 | 30 | To be negotiated |

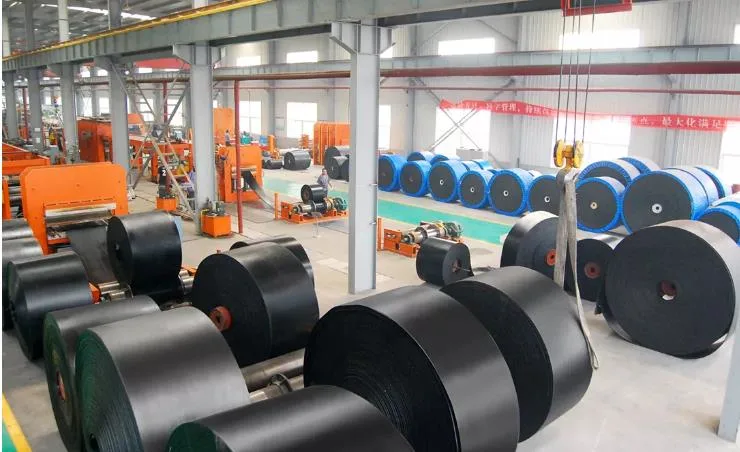

2. Advantage of advanced production equipment

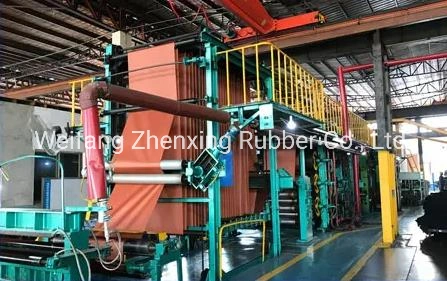

Production Equipment
Name | No | Quantity |
Rubber Mixing Mill | No information | 3 |
Press Machine | No information | 10 |
Make-up Machine | No information | 5 |
Vulcanizing Machine | No information | 15 |

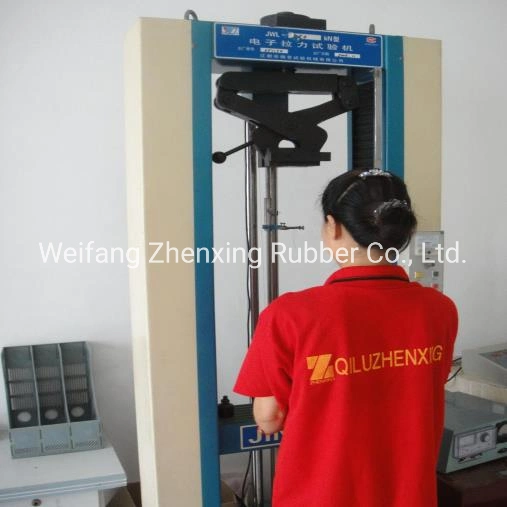

3. Fine quality management model create quality products
In addition to the production according to the relevant national standards, according to the different technical requirements of foreign users, we can also refer to the German DIN standard, British BS3289 standard, Japan JIS standard, the United States RMA standard organization production. All kinds of product conveyor belts produced by our company are suitable for conveying operation with high strength and large load long distance in the underground coal mine, and their safety performance meets or exceeds the requirements of British BS3289 standard.
4.OUR TRADE CAPABILITIES
Main Markets & Product(s)
Main Markets | Total Revenue(%) | Main Product(s) |
North America | 25.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Southeast Asia | 10.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Mid East | 10.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
South America | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Eastern Europe | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Africa | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Oceania | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Eastern Asia | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Western Europe | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Central America | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Northern Europe | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Southern Europe | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
South Asia | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Domestic Market | 5.00% | EP Conveyor Belt; Nylon Conveyor Belt; Heat resistant Conveyor Belt; Conveyor Roller; Chevron Conveyor Belt |
Language Spoken | English |
No. of Employees in Trade Department | 15 People |
Average Lead Time | 14 |
Total Export Revenue | 10000000 |
Accepted Delivery Terms | FOB, CFR, CIF, EXW |
Accepted Payment Currency | USD, EUR |
Accepted Payment Type | T/T, L/C, Western Union, Cash |
Nearest Port | XINGANG, QINGDAO |

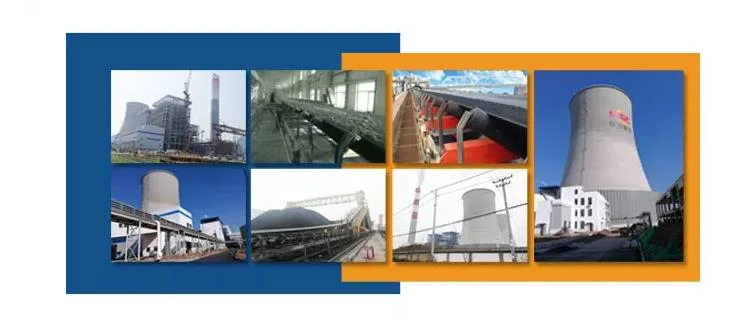

Application
Fabric conveyor belt are classified according to different carcass, include nylon (NN) conveyor belt, EP conveyor belt, cotton (CC) conveyor belt. The NN conveyor belt is the best choice for the working under the condition of middle or long distance, heavy loading capacity, high speed, strong lash and high vulnerability, and can be widely used in coal, mine, port, metallurgy, electric power, chemical industry for materials conveying.
Q1: What types of Conveyor Belt you can Produce?
A: Hello,Dear We can produce Sidewall,Flat,Chevron,Steel Cord Conveyor Belt,Heat Resistant,
Oil Resistant,Acid-Alkali Resistant Cold Resistant and PIPE Conveyor Belt etc.
Q2:Does your Company have ISO Certificate?
A: Yes of course we have ISO9001:2008 Certificate.
Q3:Can you Provide FORM E Certificate of Origin for us?
A: Yes we can do Normal CO,FROM E,FROM F,FORM A etc.
Q4:What is your Delivery Time?
A:Normally Within 10-20days after getting your Prepayment or L/C.
Q5:Can you give Guarantee if I buy your belt?
A:Of course,we must give Guarantee for all of our Products,Please tell me your Details of Requirement.
Q6:What is your factory's main belt?
A:Sidewall Conveyor Belt Product List for reference.
.
We will be appreciated if you can provide the following specification:
1. Conveyor belt type
2. Top cover thickness
3. Bottom cover thickness
4. No.of plies
5. Width of the conveyor belt
6. Grade:
If you are not sure for any of above,we can recommend for you.
Once we get above information we will quote exact price at soonest time.
