High Quality SMT SMD Machine Reflow Solder Oven Reflow Soldering Machine
Product Description JAGUAR 8 zones Reflow Oven with PC and RailSpecification:ModelJAGUAR M8 Heating SystemNumber of heating zonesUP 8/BOTTOM 8Number of cooling zones1Length of heating zones2900MMHeating modehot ai......
Send Inquiry
Product Description
Product Description

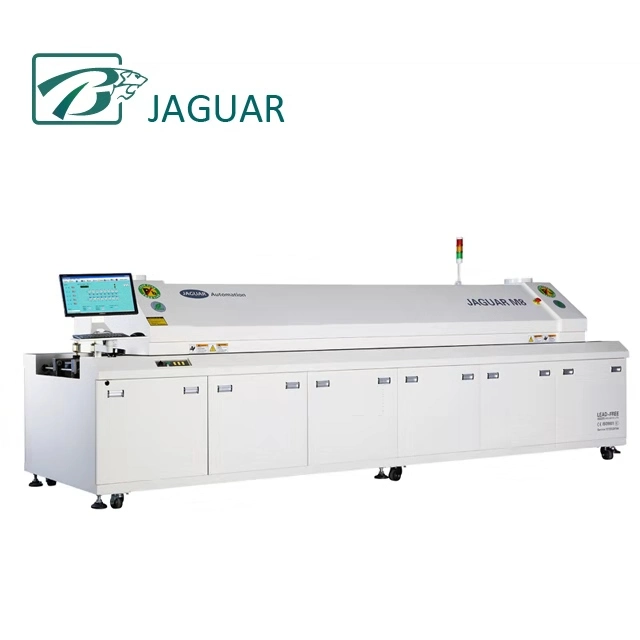

JAGUAR 8 zones Reflow Oven with PC and Rail
Specification:
Features:
A.The unique advanced long life heating system
1. The heating system adopt the Swedish nickel flipping pipe which with high efficiency and energy saving. The peak wave length of radiation power is 4UM with curved surface reflector to accelerate the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system makes PCB and the component heated uniform and eliminates the "shadow effect" completely.
2. Special high temperature resistant protection system (the United States of America's high density insulation rock wool in heat preservation system and special iron in furnace. It suit for lead free welding and the welding area with rosin flux recovery system to protect environment.
3. Using imported Taiwan SanYue long axis of high temperature fan motor.

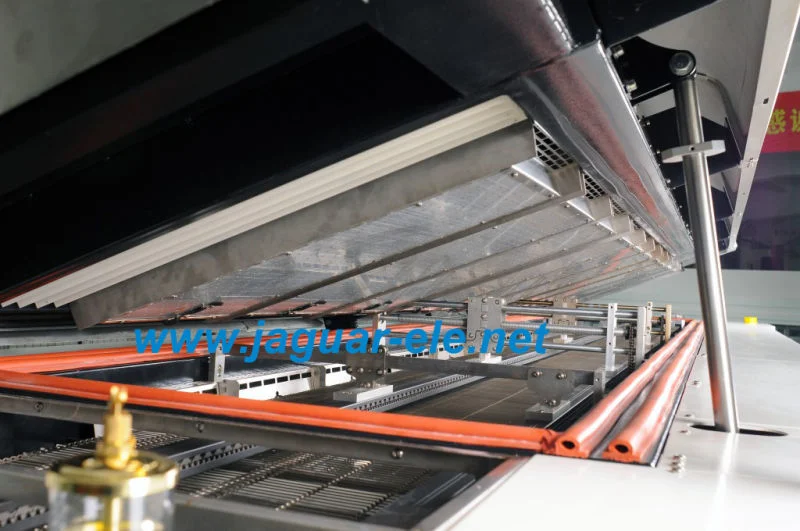

4. Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB. The whole top oven can open completely easy to clean oven inside.
B.Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth and to speed 0-1500mm/min.frequency stepless speed regulation.
2. Independent wheel structure and support and match with accompany stainless belt to make the running smooth and the speed precision is up to20mm/min.
3. Special stainless belt: durable and wear-resistant, not easy to deform by long time use.
C.The Electrical control system is stable and reliable.
1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system. It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heat.
2. Using Fanda thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone.
3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the service time effectively. No contact output and the fuzzy control function by thermostat, can monitoring the changes in the outside temperature and calorific value, controlling the heating device by the minimum pulse, ensuring the high precision of temperature control & the uniform temperature in internal and the length, direction, temperature distribution ,all of these meet IPC standard.
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5. Failure diagnosis and sound and light alarm.
Delay shutdown protection function, uniform cooling after the shutdown: prevent component deformation.
6.Jaguar products: stencil printer,buffer conveyor, reflow oven, lead-free reflow solder oven, reflow soldering oven,wave solder or wave soldering machine, smt chip mounter,Smt Pick and Place Machine, PCB conveyor, smt machine/Smt Equipment and smt peripheral equipments.
FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
Contact info:
Nona Xiao
Shenzhen Jaguar Automation Equipment Co.,Ltd.
Global Power SMT Equipment Leader
Add:14th Building,West of Furong Industrial park,Shajing town,Bao.an District,Shenzhen,Guangdong,China
Tel:+86-755-23316315 Fax:+86-755-29497125
Specification:
| Model | JAGUAR M8 | |
| Heating System | Number of heating zones | UP 8/BOTTOM 8 |
| Number of cooling zones | 1 | |
| Length of heating zones | 2900MM | |
| Heating mode | hot air | |
| Cooling Mode | Forced air | |
| Conveyor System | Max. Width of PCB | 350mm |
| Mesh belt width | 400mm | |
| Transmission Direction | L→R(or R→L) | |
| Transmission Net Height | 880±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 0-300mm | |
| Conveyor speed | 0-1500mm/min | |
| Auto/manual Lubrication | standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
| Control system | Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power | 40kw | |
| Starting power | 38kw | |
| Normal power consumption | 4KW | |
| Warming time | About 20 mins | |
| Temp. setting range | Room temperature-300ºC | |
| Temp. control method | PLC&PC control & SSR driving | |
| Temp. control precision | ±1ºC | |
| Temp. deviation on PCB | ±2ºC | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temp. (extra-high/extra-low temp.) | |
| Board dropped alarm | Tower light:Yellow-warming, Green-normal, Red-abnormal | |
| General | Dimension(L*W*H) | 4300×1000×1490mm |
| Weight | 900KG | |
| Color | Computer gray | |
Features:
A.The unique advanced long life heating system
1. The heating system adopt the Swedish nickel flipping pipe which with high efficiency and energy saving. The peak wave length of radiation power is 4UM with curved surface reflector to accelerate the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system makes PCB and the component heated uniform and eliminates the "shadow effect" completely.
2. Special high temperature resistant protection system (the United States of America's high density insulation rock wool in heat preservation system and special iron in furnace. It suit for lead free welding and the welding area with rosin flux recovery system to protect environment.
3. Using imported Taiwan SanYue long axis of high temperature fan motor.
4. Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB. The whole top oven can open completely easy to clean oven inside.
B.Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth and to speed 0-1500mm/min.frequency stepless speed regulation.
2. Independent wheel structure and support and match with accompany stainless belt to make the running smooth and the speed precision is up to20mm/min.
3. Special stainless belt: durable and wear-resistant, not easy to deform by long time use.
C.The Electrical control system is stable and reliable.
1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system. It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heat.
2. Using Fanda thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone.
3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the service time effectively. No contact output and the fuzzy control function by thermostat, can monitoring the changes in the outside temperature and calorific value, controlling the heating device by the minimum pulse, ensuring the high precision of temperature control & the uniform temperature in internal and the length, direction, temperature distribution ,all of these meet IPC standard.
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5. Failure diagnosis and sound and light alarm.
Delay shutdown protection function, uniform cooling after the shutdown: prevent component deformation.
6.Jaguar products: stencil printer,buffer conveyor, reflow oven, lead-free reflow solder oven, reflow soldering oven,wave solder or wave soldering machine, smt chip mounter,Smt Pick and Place Machine, PCB conveyor, smt machine/Smt Equipment and smt peripheral equipments.
FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
Contact info:
Nona Xiao
Shenzhen Jaguar Automation Equipment Co.,Ltd.
Global Power SMT Equipment Leader
Add:14th Building,West of Furong Industrial park,Shajing town,Bao.an District,Shenzhen,Guangdong,China
Tel:+86-755-23316315 Fax:+86-755-29497125
