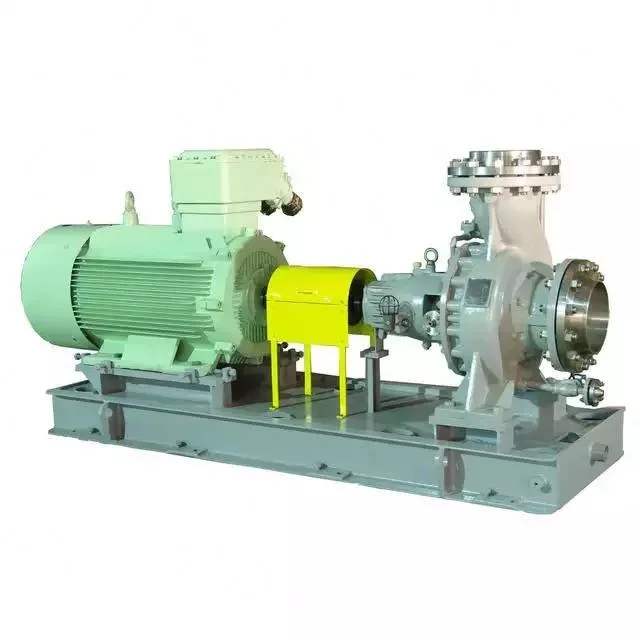

Hot Sale High Quality API 610 Standard Petrochemical Process Thermal Oil Centrifugal Pump

Overview of ZA petrochemical process pump
Chemical process pump is used Zui widely in petrochemical enterprises. It forms a complete liquid conveying unit with motor and pipeline system. Raw materials, semi-finished products and finished products in petrochemical production are mostly liquids. When making raw materials into products, it needs to go through complex process, and the pump plays the role of providing pressure and flow. If the pipeline is compared to the blood vessels of the human body, the pump is like the heart of the human body. It can be seen that if the pump can not work normally, the whole chemical process will be unsustainable.

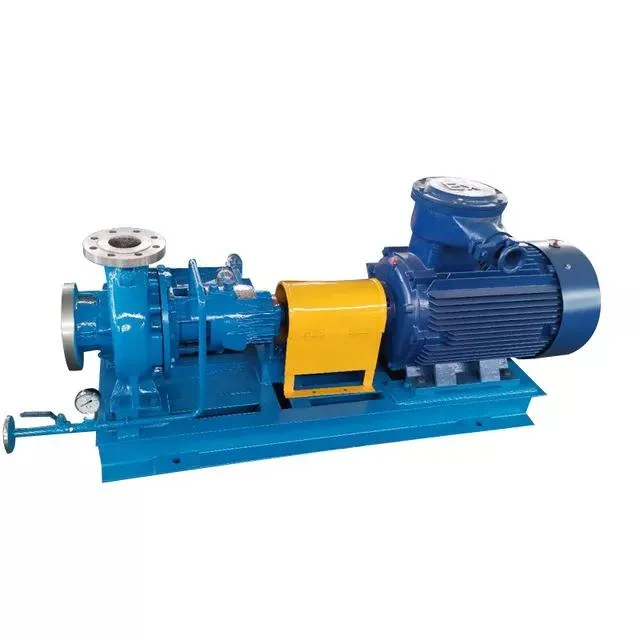

This series of chemical process pumps are single-stage single suction cantilever centrifugal pumps. Generally, the sealing form is mechanical seal. According to the user's requirements, single end face or double end face balanced cartridge mechanical seal can be adopted, but the sealing form of packing can also be adopted according to the user's requirements. If the temperature of the conveying medium is high, a set of external cooling water cooling device, flushing or sealing fluid system can be added to the mechanical seal, and the sealing pipeline system shall be designed according to API specifications.
Product features of ZA chemical process pump
The chemical process pump does not need to disassemble the inlet and outlet pipes like other pumps when overhauling the pump. After dismantling the pump cover of the chemical process pump, the suspension and rotor can be taken out from the pump body, so it is very convenient to work when overhauling the chemical process pump. A sealing ring is installed on the rear cover plate of the impeller, so the axial force can be balanced, and the other unbalanced forces are borne by the thrust bearing. The bearing is an oil lubricated ball bearing. The oil ring provides oil and can automatically control the oil level. When the working temperature is lower than 250 ºC, the suspension does not need to be cooled. When the working temperature is higher than 250 ºC ~ 450 ºC, another water cooling device needs to be added for cooling.
Application of ZA petrochemical process pump products
This series of chemical process pumps are mainly suitable for conveying clean or low-temperature or high-temperature liquids containing a small amount of particles; It is suitable for transporting neutral or corrosive liquids, including alkaline solutions such as sodium carbonate at various temperatures and concentrations, various salt solutions, various acid solutions and salt solutions, various liquid petrochemical products, organic compounds and other corrosive raw materials and products. Chemical process pumps are mainly used in oil refineries, petrochemical industry, coal processing industry and low temperature engineering, paper industry, sugar industry and seawater desalination engineering.

Hunan Jiahua Pumps is a manufacturer with many years of experience in mining, power generation, dredging, hydraulic, irrigation, slurry transportation, construction, seawater, oil and gas transportation, solar energy system and other industries.

We can provide you with high efficiency and energy saving of multistage pump, boiler feed pump, slurry pump, oil pump, self-priming pump, chemical pump, mining pumps, submersible pumps, sewage pumps, sea water pumps, solar pumps, fire pumps, split case pumps, irrigation pumps and other products.

Our Products sales well to Europe, America, Southeast Asia, Oceania, Middle East and Africa more than 90 countries.

Our products are widely used in mining, mineral processing, metallurgy, iron and steel, boiler water supply, oil field, chemical industry, paper making, water conservancy facilities, sewage treatment, drainage and water supply.

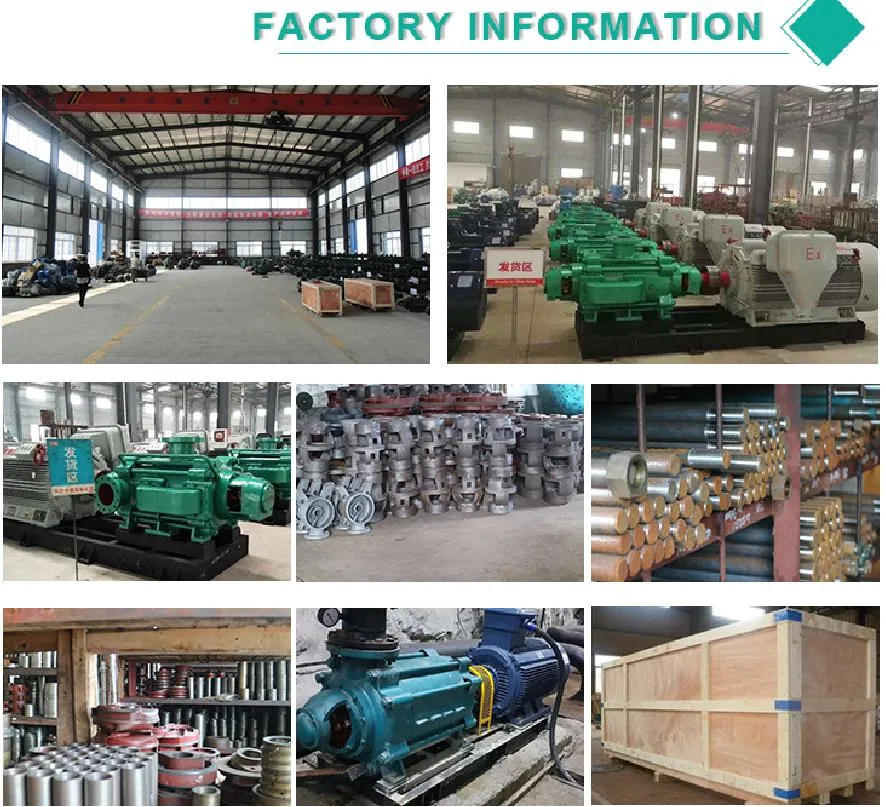

We have strong technical force, advanced production testing equipment, scientific management methods, stable and reliable quality products, perfect after-sales service.

We are committed to providing the highest level of customer service, competitive prices, fast delivery and comprehensive, sophisticated products. Your satisfaction is our ultimate goal!


Our Services
1. Processing with supplied drawing
2. Processing with supplied samples
3. Produce all kinds of anti abrasive spare parts except for pump
4. Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.

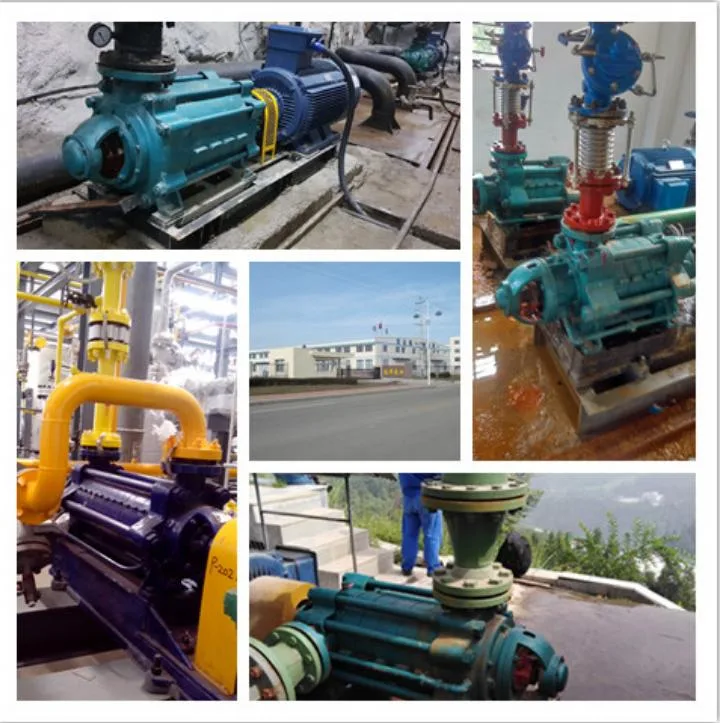

Application
