Qdx 550kw 3/4HP Electric Submersible Water Pump for Agriculture Use Deep Well
Product DescriptionInstallation And UseQ(D)X series submersible pump consist of pump, seal and motor, and equipmented with protection apparatus, It is designed for clean water, widely used for drawing water from well, farm irrigation, garden, building construction, breeding industry, and daily ......
Send Inquiry
Product Description
Product Description
Installation And Use

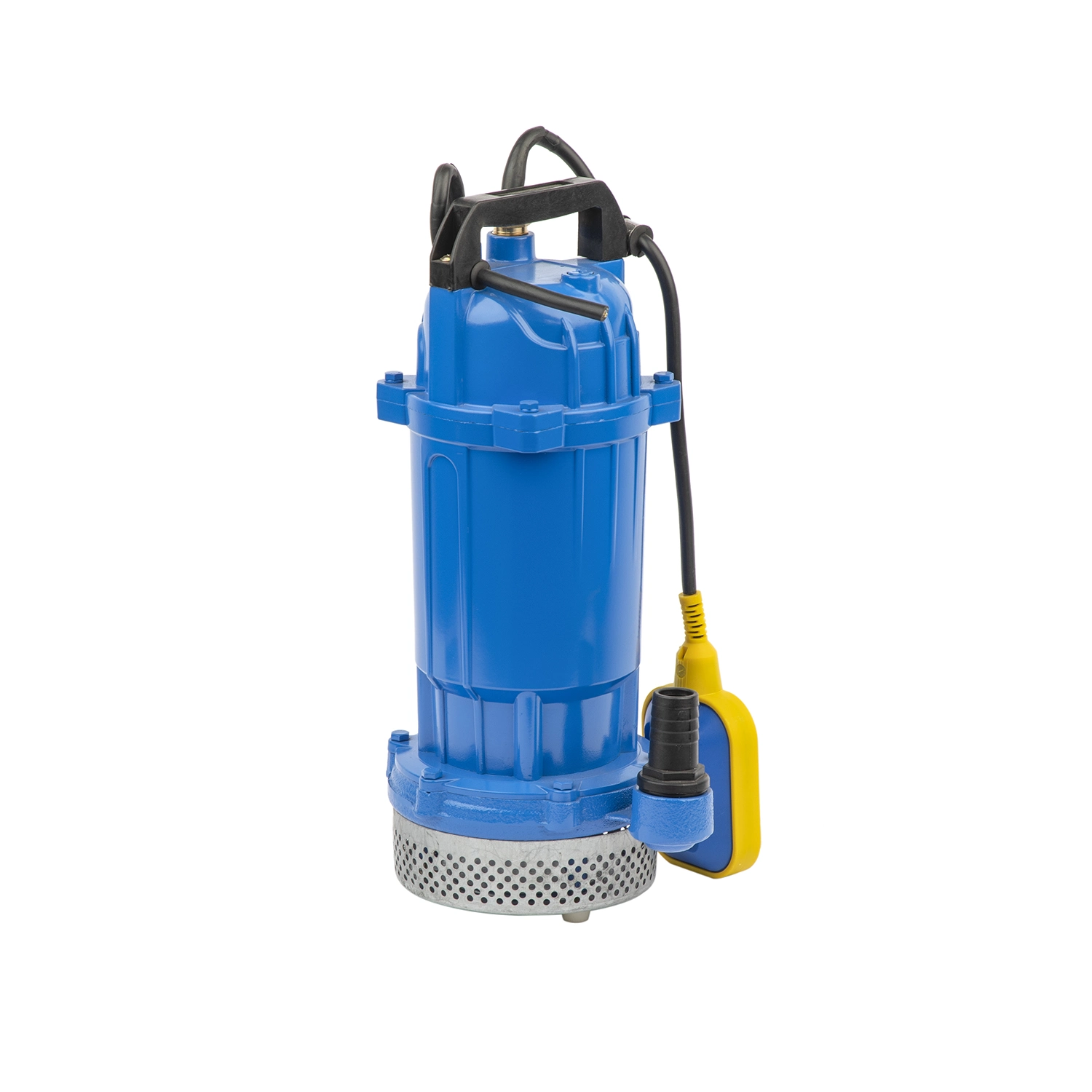

Q(D)X series submersible pump consist of pump, seal and motor, and equipmented with protection apparatus, It is designed for clean water, widely used for drawing water from well, farm irrigation, garden, building construction, breeding industry, and daily life. Moreover, it has small volume and light weight, more easy to use.

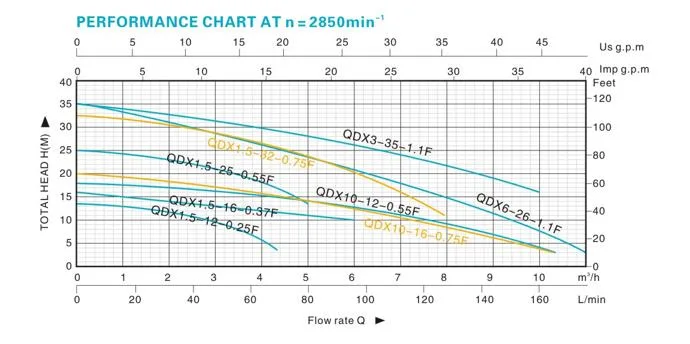

| Model | Power | Q.Rated | H.Rated | Inlet/Outlet | G.W. | Packing dimension | 20GP | |
| [Kw] | [HP] | [m³/h] | [m] | [inch] | [kg] | [mm] | [pcs] | |
| QDX1.5-12-0.25F | 0.25 | 0.37 | 1.5 | 12 | 1" | 6.5 | 380×160×190 | 2500 |
| QDX1.5-16-0.37F | 0.37 | 0.5 | 1.5 | 16 | 1" | 7.5 | 380×160×190 | 2500 |
| QDX1.5-25-0.55F | 0.55 | 0.75 | 1.5 | 25 | 1" | 10 | 390×180×200 | 1900 |
| QDX3-18-0.55F | 0.55 | 0.75 | 3 | 18 | 1.25" | 10 | 390×180×200 | 1900 |
| QDX10-12-0.55F | 0.55 | 0.75 | 10 | 12 | 1.5" | 10 | 390×180×200 | 1900 |
| QDX15-7-0.55F | 0.55 | 0.75 | 15 | 7 | 2" | 10 | 390×180×200 | 1900 |
| QDX1.5-32-0.75F | 0.75 | 1 | 1.5 | 32 | 1" | 12 | 410×195×220 | 1600 |
| QDX3-24-0.75F | 0.75 | 1 | 3 | 24 | 1.25" | 12 | 410×195×220 | 1600 |
| QDX8-18-0.75F | 0.75 | 1 | 8 | 18 | 1.5" | 11.5 | 410×195×220 | 1600 |
| QDX10-16-0.75F | 0.75 | 1 | 10 | 16 | 2'' | 11.5 | 410×195×220 | 1600 |
| QDX15-10-0.75F | 0.75 | 1 | 15 | 10 | 2.5'' | 12 | 410×195×220 | 1600 |
| QDX30-6-0.75F | 0.75 | 1 | 30 | 6 | 3" | 12 | 420×285×220 | 1100 |
| QDX3-35-1.1F | 1.1 | 1.5 | 3 | 35 | 1" | 13.5 | 455×205×210 | 1400 |
| QDX6-26-1.1F | 1.1 | 1.5 | 6 | 26 | 1.5" | 14 | 465×250×205 | 1200 |
| QDX15-14-1.1F | 1.1 | 1.5 | 15 | 14 | 2.5" | 15 | 470×260×225 | 1000 |
| QDX40-6-1.1F | 1.1 | 1.5 | 40 | 6 | 3" | 15.5 | 500×280×210 | 950 |
| QDX25-12-1.5F | 1.5 | 2 | 25 | 12 | 2.5" | 17.5 | 500×280×210 | 950 |
| QDX40-9-1.5F | 1.5 | 2 | 40 | 9 | 3" | 18 | 500×280×210 | 950 |
FAQ
A: How about the quality?
Q:We use high quality raw material for production, and 100% QC in producing process before the goods being packed up. we sincerely expect to work with you for long and stable time.
A: What's your warranty?
Q: One year warranty, detail as your requirement.
A: Could I put my own logo on it?
Q: Sure, we can make your logo after you give us your authorization
A: What's your payment term?
Q: 30% deposit before producing, 70% TT against BL copy
A: Can I get a sample to check your quality and how long i can get samples?
Q: yes,very welcome and sample will be finished within 7-14 days.
A: How about the delivery time?
Q: 30-60 days after receipt of deposit.
