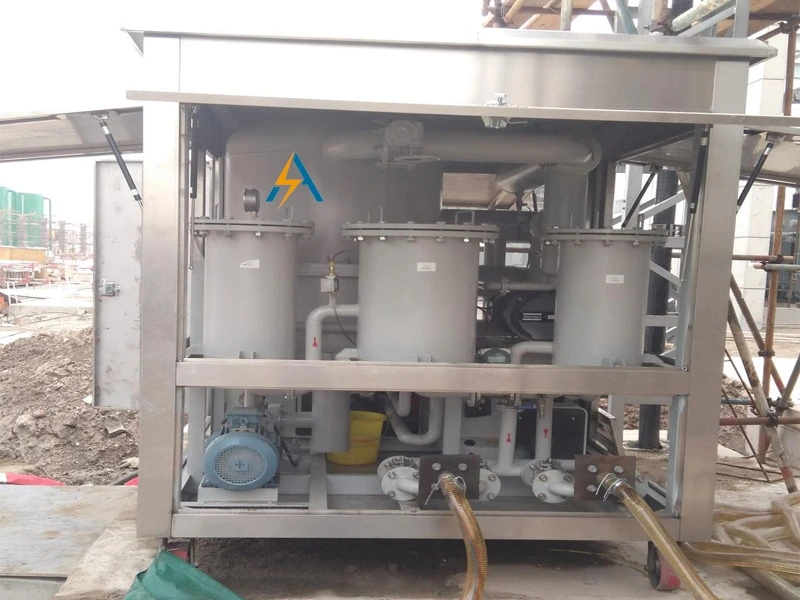

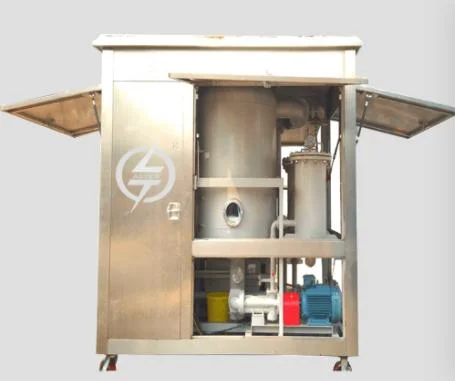

Super High Voltage 1000kv Transformer Oil Regeneration and Decoloring System Plant
ASSEN Super High Voltage 1000KV Transformer Oil Regeneration and Decoloring System PlantApplication:ASSEN Super High Voltage 1000KV Transformer Oil Regeneration and Decoloring System Plant is especially for ultra-high voltage project as 1000KV.Substation Maintenance Contractors and Utili......
Send Inquiry
Product Description
Application:
ASSEN Super High Voltage 1000KV Transformer Oil Regeneration and Decoloring System Plant is especially for ultra-high voltage project as 1000KV.
Substation Maintenance Contractors and Utilities need an oil filtration machine that can quickly and reliably process transformer oil to meet or exceed very stringent specifications; In order to achieve optimal dielectric strength and insulating performance inside of transformers and circuit breakers, dielectric oils must be kept absolutely clean and dry
Features of Super High Voltage 1000KV Transformer Oil Regeneration and Decoloring System Plant
1.Movable very easily and can be used both indoor and outdoor.
3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
5. Can be applied for vacuum oiling and drying power transmission equipment.
6. Special additives for depolarization can recover oil color of aged transformer oil to new.
Assen Super High Voltage 1000KV Transformer Oil Regeneration and Decoloring System Plant 's Technical Parameters
| Item | Parameter | Type Unit | ZUD-100 | ZUD-150 | ZUD-200 | ZUD-300 | |
| Technical parameter | Flow Rate | L/H | 6000 | 9000 | 12,000 | 18,000 | |
| Working Vacuity | Pa | ≤20 | |||||
| Limit vacuity | Pa | ≤3 | |||||
| Working pressure | Mpa | ≤0.5 | |||||
| TemperatureRange | °C | 45-65 | |||||
| Power Supply | 50Hz 380V 3-Phase 4-Wire (or as required) | ||||||
| Noise | dB(A) | ≤70 | |||||
| Continues running time | Hour | ≥200 | |||||
| No problem running time | Hour | ≥5,000 | |||||
| Total Power | KW | 2X30+6.6 | 3X30+8.2 | 45*3+10 | 5X30+16.5 | ||
| Inlet/Outlet Diameter | mm | 44 / 38 | 48 / 44 | 50 / 50 | 76 / 64 | ||
| Size | Length | mm | 1870 | 1930 | 2850 | 2250 | |
| Width | mm | 1250 | 1400 | 2050 | 1750 | ||
| Height | mm | 2200 | 2460 | 2600 | 2650 | ||
| Weight | Kg | 1200 | 1600 | 2200 | 3000 | ||

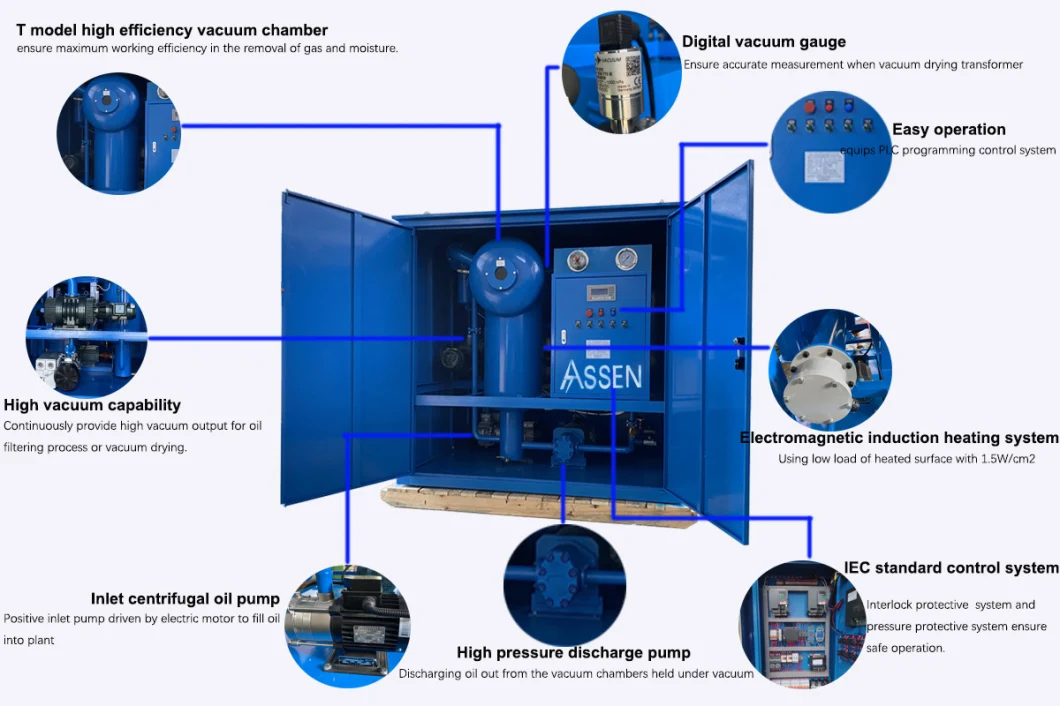

Detailed Components of Super High Voltage 1000KV Transformer Oil Regeneration and Decoloring System Plant
ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty-six (26) months from the date of shipment or twenty-four (24) months after the start-up of the system. ASSEN's obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.
1. We customize the machine to your requirements.
2. We have more than 20 years of export experience.
3. We offer our customers high-quality products at a competitive price.
4. We offer our customers excellent after-sales service.
5. We are not satisfied until our customers are satisfied.
Please contact Assen for more details.
